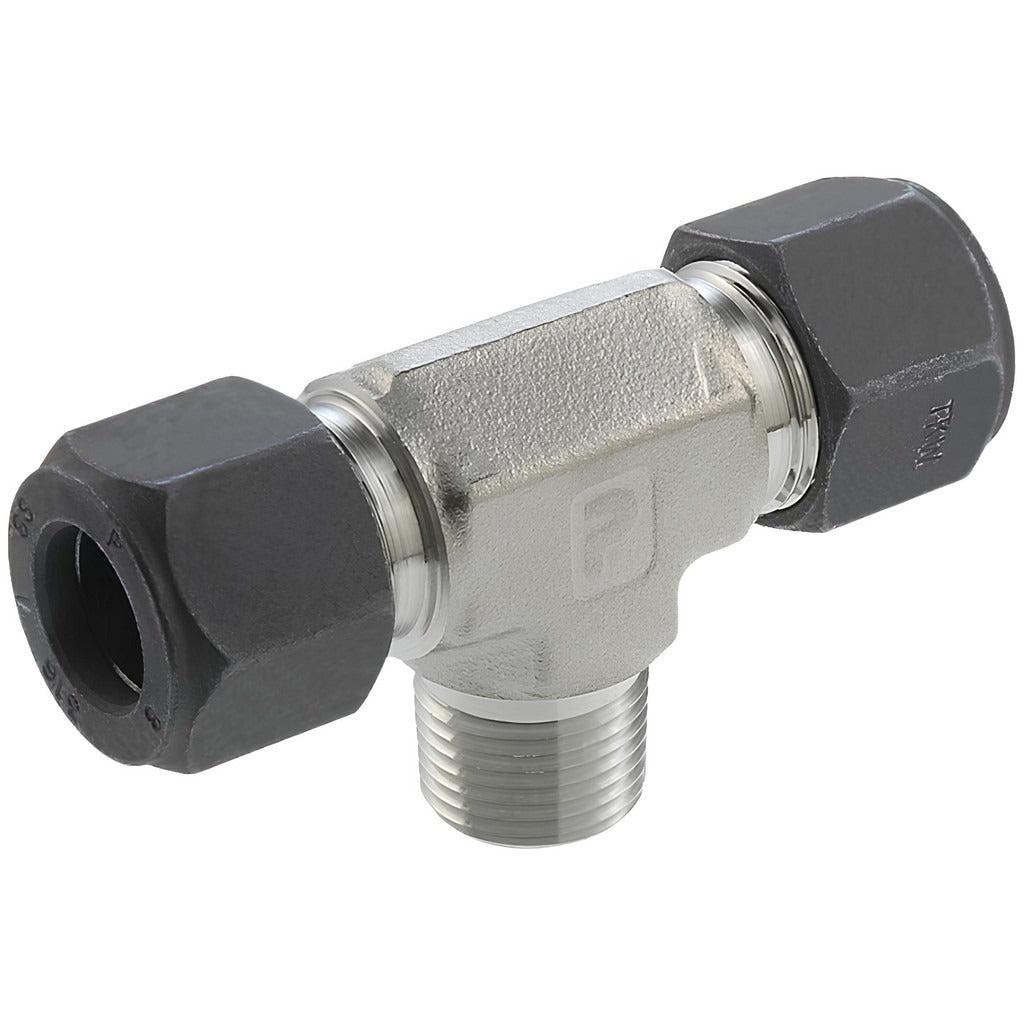

Parker 2-2-2 Sbz-ss Compression Male Branch Tee 1/8 in

Product Description

The PARKER 2-2-2 SBZ-SS is a stainless steel compression tube male branch tee designed for high-pressure fluid and gas line applications. It features two compression end connections and one male NPT (MNPT) threaded outlet, allowing a branch takeoff from a compression tube run to a threaded port. With a maximum working pressure of 10,900 psi, this fitting is built for demanding instrumentation, hydraulic, and process piping systems. Licensed plumbers, pipefitters, and instrumentation technicians typically install this type of fitting in commercial and industrial environments where leak-free, high-integrity connections are required.

This fitting is suited for use in high-pressure instrumentation lines, process control systems, and fluid handling assemblies that require a reliable branch connection from 1/8 inch OD tubing. The stainless steel construction makes it appropriate for corrosive environments and applications involving aggressive media. It is commonly found in industrial process plants, HVAC control systems, and hydraulic test rigs where a tube-to-threaded branch configuration is needed.

Key Features

• Stainless steel construction for corrosion resistance in harsh environments
• Maximum working pressure of 10,900 psi for high-pressure service
• Compression x Compression x MNPT end connections for versatile tube-to-thread branch configurations
• 1/8 inch tube outside diameter compatibility
• MPT thread standard on the male NPT outlet
• Compact branch tee geometry minimizes inline space requirements

Compatibility

Designed as an OEM-style replacement or new-install fitting for high-pressure compression tube systems using 1/8 inch outside diameter tubing with a male NPT branch port.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician familiar with compression fitting assembly procedures. De-pressurize and isolate the line completely before disassembling or installing any compression fitting. Compression fittings require proper tube preparation including clean, square cuts and deburring to achieve a leak-free seal. Follow all applicable codes including ASME B31.3 for process piping when installing in regulated systems.
