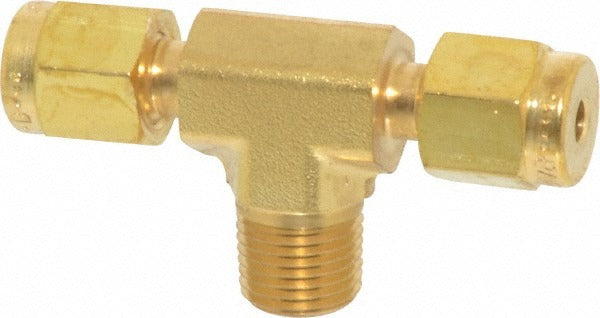

Parker 2-2-2 Sbz-b Compression Male Branch Tee 1/8 Inch

Product Description

The PARKER 2-2-2 SBZ-B is a brass compression tube male branch tee designed for instrument and fluid system tubing connections. It provides three-way flow distribution with two compression ends and one male NPT port, allowing a branch takeoff from a compression tube run with a threaded connection on the branch outlet. Rated to 3600 psi maximum working pressure, this fitting is suited for high-pressure instrument tubing applications. Manufactured from brass to ASTM-B-453 and ASTM-B16 standards. Licensed HVAC technicians, plumbers, and instrument fitters install this fitting in pneumatic and hydraulic control lines, refrigerant circuits, and process instrumentation tubing systems.

This fitting is used in residential and commercial installations where a compression tube line requires a branch outlet terminating in a male NPT connection. Common applications include instrument air lines, control panel tubing manifolds, pneumatic control circuits, and compressed gas distribution systems. The 1/8 inch male NPT thread mates directly to standard female-threaded ports on valves, gauges, and instrumentation bodies. Its compact 1.84 inch overall length makes it practical in tight panel or cabinet installations.

Key Features

• Tee configuration: Compression x Compression x MNPT for inline branch with threaded outlet
• Maximum working pressure rated to 3600 psi
• 1/8 inch male NPT thread standard (MPT)
• Brass construction to ASTM-B-453 and ASTM-B16 standards
• Overall length of 1.84 inches for compact installation
• Single-piece package quantity suitable for individual replacement or repair

Compatibility

Cross-references to Swagelok part number B-200-3-2TTM. Designed as an OEM-style replacement or direct-fit compression tube branch tee for 1/8 inch male NPT instrumentation and fluid system applications.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified instrumentation fitter. De-pressurize and isolate the tubing system completely before disassembly or fitting replacement. Ensure tube ends are cut square, deburred, and fully seated into the compression ferrule before torquing the nut. Apply thread sealant to the male NPT port in accordance with applicable plumbing and mechanical codes.
