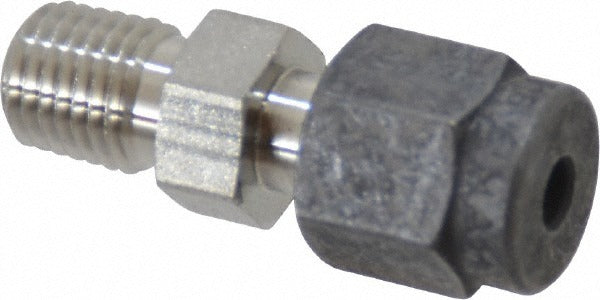

Parker 2-1 Fbz-ss Compression Tube Connector 1/16 in Mnpt

Product Description

The PARKER 2-1 FBZ-SS is a stainless steel compression tube connector designed to create a secure, leak-free transition between a compression tube end and a male NPT threaded port. With a 1/16 inch thread size and a maximum working pressure of 10,900 psi, this fitting is built for demanding fluid and instrumentation applications where material integrity and pressure retention are critical. At 1.17 inches in overall length and weighing under 0.04 pounds, it is a compact fitting suited for tight plumbing layouts. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers of this type of hardware.

This connector is commonly used in hydraulic, pneumatic, instrumentation, and process fluid systems where stainless steel construction is required to resist corrosion or meet material compatibility requirements. The compression-by-MNPT configuration allows direct connection to a male NPT port on a valve, manifold, gauge, or instrument body while accepting a compression tube on the opposite end. It is appropriate for both industrial and commercial installations where high-pressure service demands reliable fittings.

Key Features

• Stainless steel construction for corrosion resistance in demanding service environments
• Maximum working pressure of 10,900 psi suitable for high-pressure instrumentation and fluid systems
• Compression x MNPT end connections for direct port-to-tube transitions
• 1/16 inch thread size with MPT thread standard
• Compact overall length of 1.17 inches for use in tight assemblies
• Sold as individual piece with no minimum order beyond a single unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube-to-male NPT port connections in high-pressure fluid, pneumatic, and instrumentation systems requiring stainless steel construction.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician familiar with compression fitting assembly procedures. Depressurize and isolate the system completely before removing or installing any compression fittings. Do not over-tighten the compression nut, as this can deform the ferrule and compromise the seal. Follow applicable codes, including IPC and relevant ASME or instrumentation standards, for high-pressure tubing connections.
