Parker 2-1 Cbz-ss Compression Male Elbow 1/16 in Ss

Product Description

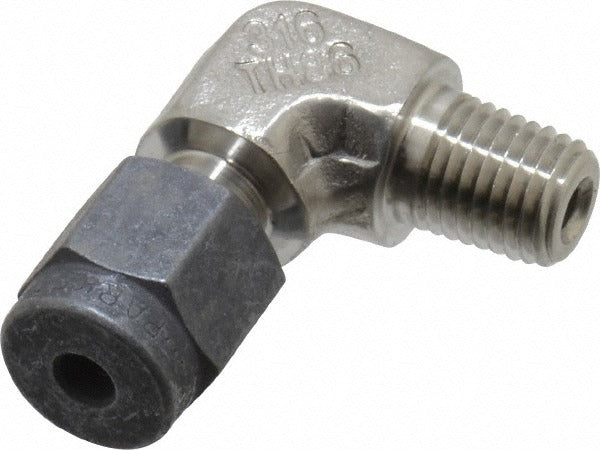

The PARKER 2-1 CBZ-SS is a compression tube male elbow fitting machined from stainless steel. It creates a 90-degree directional change in a compression tube line while terminating in a male NPT threaded end. The fitting uses a 1/16 inch thread size with an MPT thread standard and is rated for a maximum working pressure of 10900 psi. It is used in high-pressure instrumentation, hydraulic, and pneumatic tubing systems. Installation is typically performed by licensed pipefitters, instrumentation technicians, or plumbers working on industrial or process systems.

This fitting is suited for applications where a compression tube line must transition to a male pipe thread connection at a 90-degree angle. Common install scenarios include instrument tubing panels, control lines, sample systems, and process piping where stainless steel is required for corrosion resistance or elevated pressure service. The compression end accepts standard tubing and the MNPT end threads directly into a port or body fitting.

Key Features

• Stainless steel construction for corrosion resistance in demanding service environments
• Compression x MNPT end connections for direct tube-to-pipe-thread transition
• 1/16 inch thread size with MPT thread standard
• Rated to 10900 psi maximum working pressure
• 90-degree male elbow geometry for directional routing in tight installations

Compatibility

Designed as an OEM-style compression tube fitting for use in high-pressure instrumentation and process tubing systems requiring a male elbow configuration with MNPT termination.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician familiar with compression fitting assembly. Depressurize and isolate the line completely before removing or installing any fitting. Ensure tubing is cut square and deburred before seating in the compression ferrule. Follow applicable system codes and the fitting manufacturer assembly instructions for proper ferrule swage and torque procedure.
