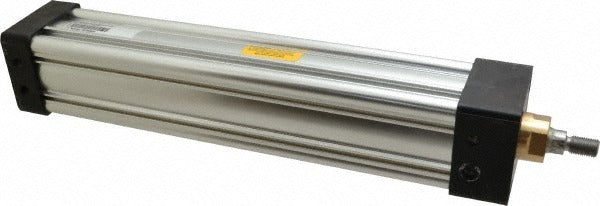

Parker 2.00TEF4MAU14A10.00 Rodless Air Cylinder 2 in 10 in

Product Description

The PARKER 2.00TEF4MAU14A10.00 is a double acting rodless air cylinder designed for linear motion applications in industrial pneumatic systems. It features a 2 inch bore and a 10 inch stroke, delivering controlled bidirectional force without an external rod extending from the cylinder body. The aluminum body keeps weight manageable at 5.4 pounds while providing structural durability. Maximum working pressure is 250 psi. The 3/8 NPTF port accommodates standard shop-air fittings, and the basic mount style allows straightforward integration into machine frames and linear actuator assemblies. Licensed millwrights, maintenance mechanics, and pneumatic system integrators are the typical installers.

This cylinder suits a wide range of industrial automation and material handling applications where a compact linear actuator is needed without the rod overhang of a conventional cylinder. The rodless design is especially practical in space-constrained fixtures, gantry systems, and slide mechanisms where stroke length would otherwise make a standard rod cylinder impractical. The basic mount configuration supports direct bolting to flat machine surfaces or structural members. With a 13-5/8 inch overall length and 2-1/2 inch overall width, the unit fits into moderately tight machine envelopes.

Key Features

• Double acting operation provides powered force in both extend and retract directions
• Rodless design eliminates rod overhang, reducing required installation space along the stroke axis
• Aluminum body construction keeps unit weight at 5.4 pounds
• Nitrile butadiene rubber seals rated for standard compressed-air service
• 3/8 NPTF ports accept common shop-air fittings and flow controls
• 7/16-20 female rod thread size for direct attachment of end-of-stroke hardware

Compatibility

Designed as an OEM-style pneumatic actuator for industrial automation systems requiring a double acting rodless cylinder with a 2 inch bore and basic mount configuration compatible with standard 3/8 NPTF pneumatic plumbing.

Installation Notes

Installation should be performed by a qualified millwright or pneumatic systems technician. Depressurize and lock out the air supply before removing an existing cylinder or making any connections. Verify that supply pressure does not exceed 250 psi and that all fittings are rated for the working pressure. Follow applicable facility safety procedures and any relevant OSHA or ANSI machine-guarding standards when integrating this actuator into automated equipment.
