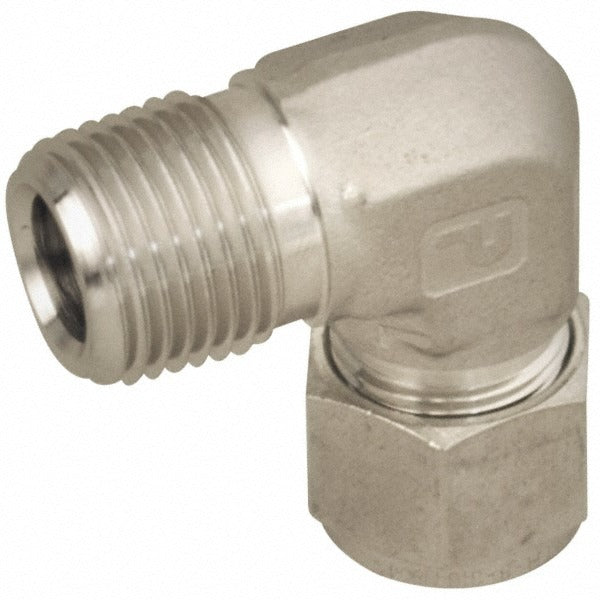

Parker 1MSEL2N-316 Compression Male Elbow 1/8-27 Npt Ss

Product Description

The PARKER 1MSEL2N-316 is a stainless steel compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port at a 90-degree angle. It transitions between a compression end and a 1/8-27 MNPT end, making it suitable for instrument, hydraulic, and process piping applications where a directional change in the line is required. Rated to 16,800 psi maximum working pressure and capable of handling temperatures from -425 degrees F to 1,200 degrees F, this fitting is built for demanding service environments. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers.

This fitting is used in residential, commercial, and industrial applications where stainless steel construction is required for corrosion resistance or high-pressure service. Typical install scenarios include instrument tubing runs, hydraulic control lines, and process fluid systems that require a 90-degree directional change at a threaded port connection. The compression end accepts standard compression tubing, and the male NPT thread conforms to the 1/8-27 NPT standard.

Key Features

• Maximum working pressure of 16,800 psi for high-pressure service
• Wide temperature range: -425 degrees F to 1,200 degrees F
• 316 stainless steel construction for corrosion resistance
• Compression x MNPT end connections for tube-to-pipe transitions
• 1/8-27 NPT thread standard for reliable sealed connections
• Compact elbow geometry for tight-space routing

Compatibility

Designed as an OEM-style compression tube fitting for use in instrument, hydraulic, and process piping systems requiring a 1/8-27 NPT male threaded port connection with a compression tube inlet.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician in accordance with applicable codes such as ASME B31.3 for process piping. Depressurize and isolate the system completely before disassembling any fittings or making new connections. Do not overtighten the compression fitting nut, as this can damage the ferrule and compromise the seal. Inspect threads and seating surfaces for damage before installation.
