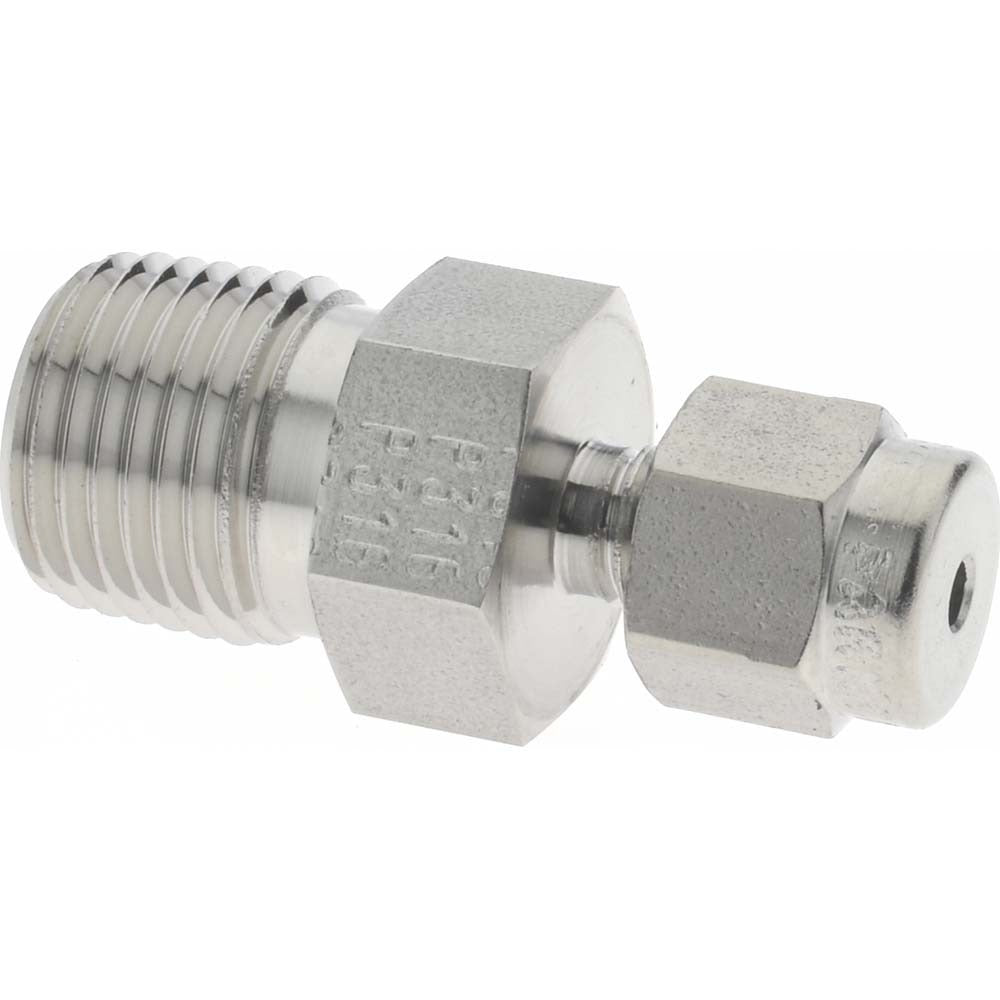

Parker 1MSC2N-316 Compression Tube Connector 1/8-27 Npt

Product Description

The PARKER 1MSC2N-316 is a stainless steel compression tube connector designed to join tubing to a male NPT port in fluid and gas distribution systems. One end accepts compression-style tube connections while the other end is a 1/8-27 NPT male threaded fitting. Rated for a maximum working pressure of 16,800 psi and a temperature range of -425 degrees F to 1,200 degrees F, this fitting is engineered for demanding instrumentation, hydraulic, and high-purity process applications. The 316 stainless steel construction provides corrosion resistance in aggressive media environments. Overall installed length is 1.03 inches. Installation is typically performed by licensed plumbers, instrumentation technicians, or pipefitters.

This compression connector is suited for use in high-pressure instrumentation tubing runs, process piping, pneumatic control lines, and chemical or fluid handling systems where a leak-tight compression-to-NPT transition is required. It is appropriate for both industrial and commercial installations where stainless steel fittings are specified for corrosion resistance or compatibility with aggressive process media. The compact form factor makes it well suited for tight panel or manifold installations.

Key Features

• Maximum working pressure of 16,800 psi for high-pressure applications
• Wide temperature range: -425 degrees F to 1,200 degrees F
• 316 stainless steel construction for corrosion resistance in aggressive media
• Compression x MNPT end connections for tube-to-pipe transitions
• 1/8-27 NPT thread standard for broad compatibility with standard pipe fittings
• Overall length of 1.03 inches for compact installation

Compatibility

Designed as an OEM-style compression tube connector for use in instrumentation, pneumatic, and fluid handling systems requiring a compression-to-male NPT transition with 1/8-27 NPT threading.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician familiar with high-pressure tubing systems. Shut off and depressurize the system fully before removing or installing any fitting. Use appropriate tube preparation tools to ensure a clean, square tube end for reliable compression seal. Follow applicable codes such as ASME B31.3 for process piping or relevant instrumentation standards for torque and assembly procedures.
