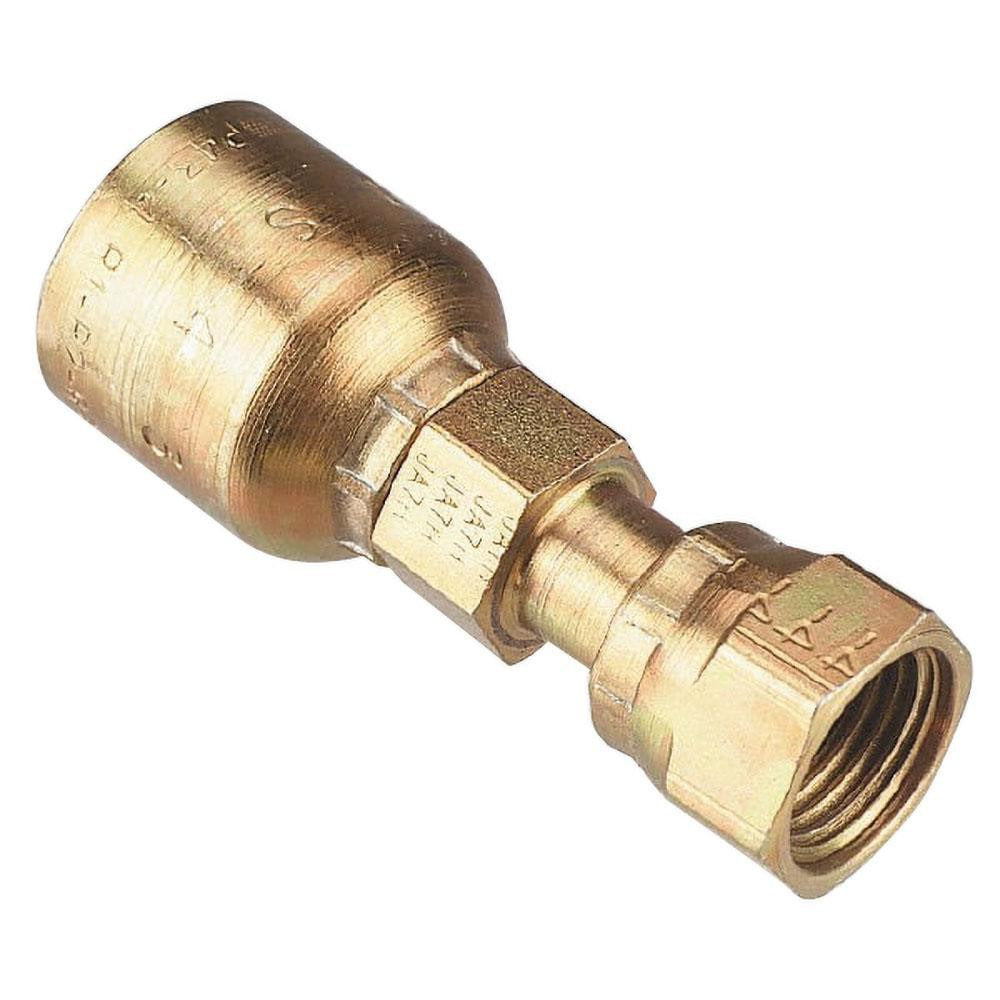

Parker 1JS43-24-24 Seal-lok Swivel Fitting 1.5 in 4000 Psi

Product Description

The PARKER 1JS43-24-24 is a female Seal-Lok swivel short fitting designed for high-pressure hydraulic hose assemblies. Manufactured from steel with a straight, threaded connection type, this fitting accepts 1.5-inch inside diameter hose (24 mm hose size, 2-12 thread size) and is rated to a maximum working pressure of 4,000 psi. The swivel design allows for rotation during assembly, reducing hose twist and simplifying routing in tight installations. At 3.91 inches overall length and 2.09 pounds, this is a compact, heavy-duty component suited for industrial and mobile hydraulic systems. Licensed hydraulic technicians and fluid power specialists are the primary installers.

This fitting is intended for use in hydraulic hose assemblies where a female Seal-Lok swivel termination is required at the hose end. The short-body configuration is well suited for installations with limited clearance. It is compatible with Parker Series 43 hose end applications and is built to ISO 12151-1 dimensional standards, making it appropriate for both OEM assembly lines and field repair work on mobile equipment, industrial machinery, and heavy-duty hydraulic circuits.

Key Features

• Female Seal-Lok swivel configuration reduces hose twist during assembly and service
• 4,000 psi maximum working pressure for high-demand hydraulic circuits
• Steel construction provides durability in demanding industrial and mobile applications
• Straight, threaded connection type for direct hose-end attachment
• 3.91-inch overall length in a short-body design for clearance-restricted installations
• Meets ISO 12151-1 standards; California PROP 65 compliant

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hydraulic hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with high-pressure hose assembly practices. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use appropriate crimping or assembly tooling specified for Seal-Lok swivel fittings, and inspect the O-ring seal surface for damage before assembly. Follow all applicable OSHA and fluid power safety guidelines when working on pressurized hydraulic systems.
