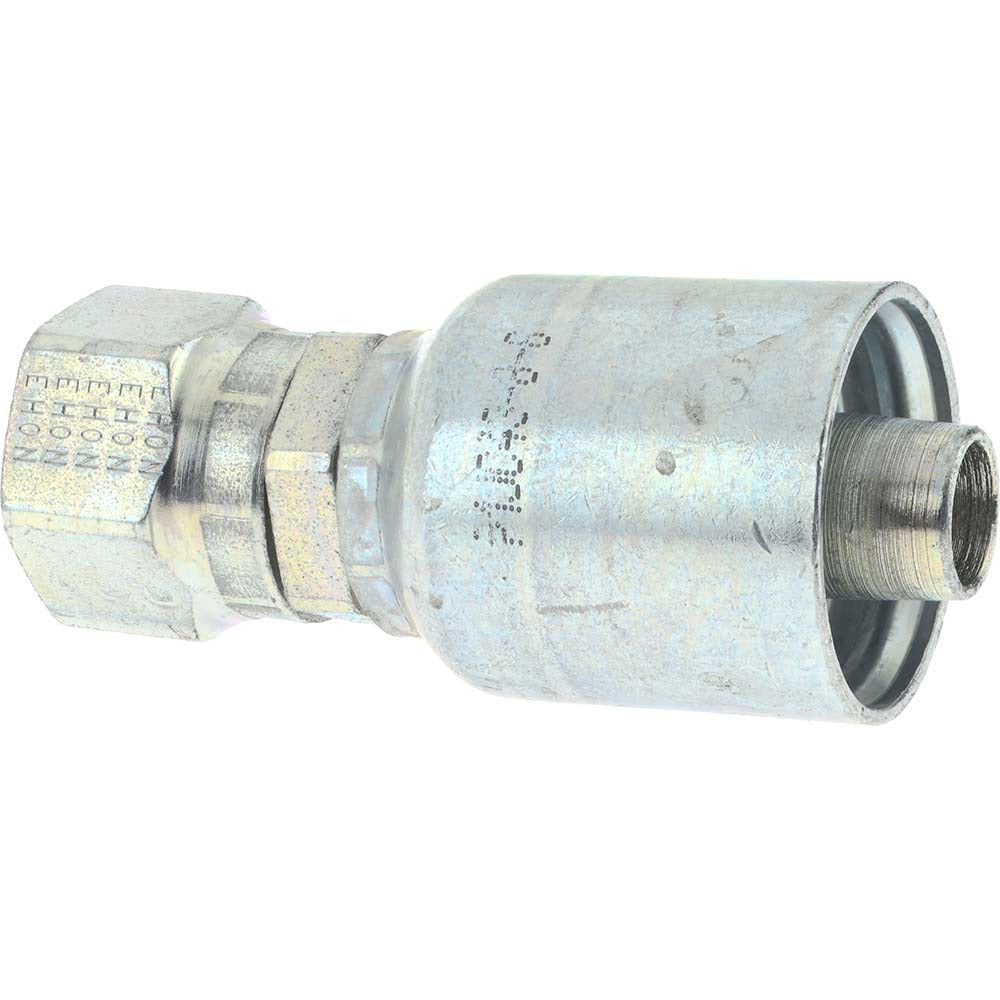

Parker 1JC43-8-8 Female Swivel Hose Fitting 0.5 in Steel

Product Description

The PARKER 1JC43-8-8 is a female swivel straight hose fitting designed for high-pressure hydraulic systems. Built from steel with a Seal-Lok shaft type, it provides a reliable leak-resistant connection between hydraulic hose and port. The fitting accepts a 0.5 inch inside diameter hose (Hose Size 8) and uses a 1/2 inch threaded connection. Overall length measures 2.22 inches (56.0 mm). The straight configuration suits applications where inline routing is required. Licensed plumbers, pipefitters, and hydraulic system technicians working on mobile or industrial hydraulic circuits will recognize this as a standard OEM-style swivel end fitting that allows hose rotation during installation without compromising the seal.

This fitting is rated for use with a broad range of Parker hydraulic hoses including Series 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses. It is suited for both mobile equipment hydraulics and stationary industrial hydraulic systems where a swivel female end is required at the hose termination point. The Seal-Lok design minimizes the risk of leakage under dynamic conditions and vibration, making it appropriate for demanding service environments.

Key Features

• Female swivel straight configuration for inline hose-to-port connections
• Seal-Lok shaft type for leak-resistant performance under pressure and vibration
• Steel construction for durability in high-pressure hydraulic service
• Accepts 0.5 inch ID (Hose Size 8) hydraulic hose
• 1/2 inch threaded connection per ISO 12151-1-SWSA
• Compact overall length of 2.22 inches for space-constrained routing

Compatibility

Compatible with Parker hose series 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881. Conforms to ISO 12151-1-SWSA.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and bleed down the hydraulic system completely before removing or installing any hose fitting. Use appropriate jaw-style or crow-foot wrenches to avoid rounding the fitting hex. Torque to the system manufacturer or Parker specification for the fitting size and thread type — do not over-torque, as this can damage the Seal-Lok sealing surfaces.
