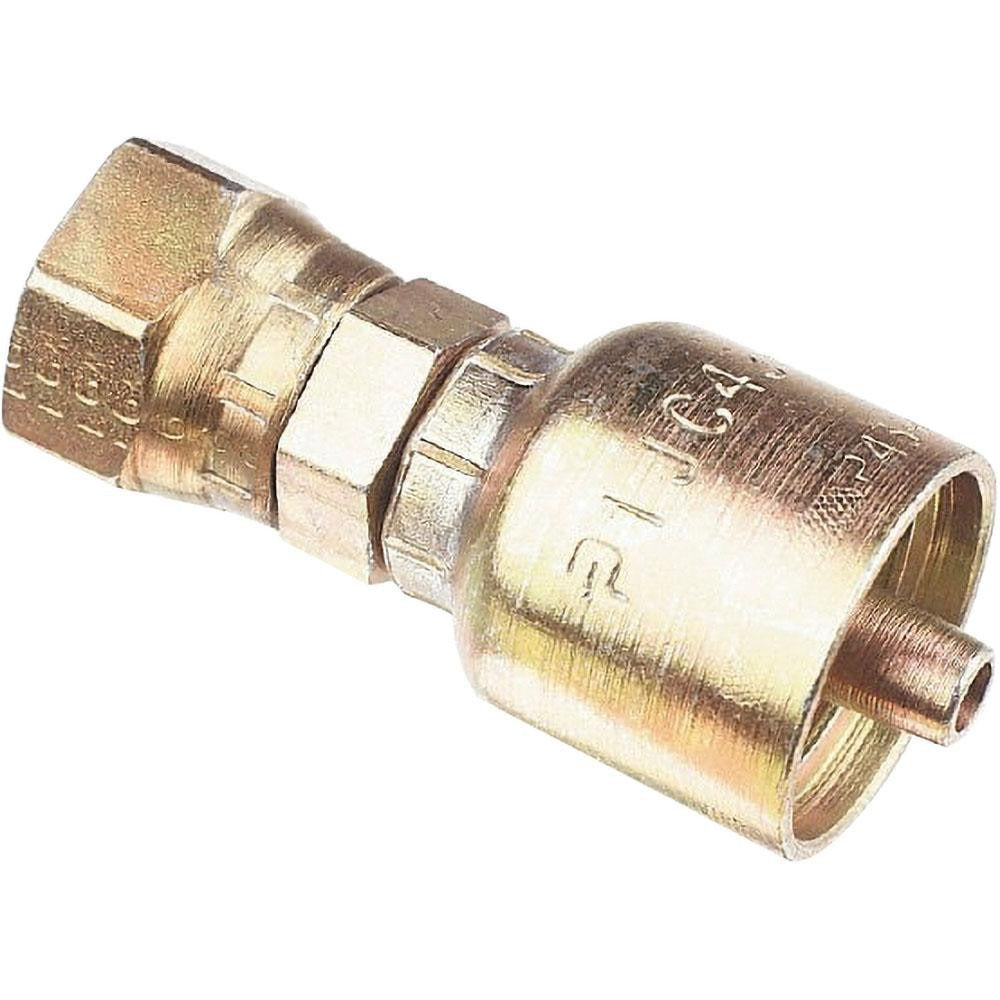

Parker 1JC43-4-4 Female Swivel Hose Fitting 0.25 in Seal-lok

Product Description

The PARKER 1JC43-4-4 is a female swivel straight fitting designed for hydraulic hose assemblies. It accepts a 1/4 inch (hose size 4) hose with an inside diameter of 0.25 inches and connects via Seal-Lok threaded interface. Manufactured from steel, this fitting provides a secure, leak-resistant connection point in hydraulic circuits. The swivel design allows the hose to be positioned without twisting the line during installation or routing. At 1.63 inches overall length, it is a compact, direct-replacement fitting suitable for industrial and mobile hydraulic systems. Licensed hydraulic technicians and fluid power specialists are the typical installers.

This fitting is intended for use in hydraulic hose assemblies requiring a 1/4 inch female swivel end connection with a Seal-Lok (O-ring face seal) thread form. It is compatible with a wide range of Parker hose series in size 4 and is well suited for both stationary industrial hydraulic systems and mobile equipment applications where reliable fluid-line connections are required.

Key Features

• Female swivel design allows hose routing adjustment without twisting the assembly
• Seal-Lok O-ring face seal thread interface for leak-resistant hydraulic connections
• 1/4 inch thread size with 0.25 inch hose inside diameter for size-4 hose compatibility
• Straight shape simplifies inline hose terminations
• Steel construction for durability in high-pressure hydraulic service
• Meets ISO 12151-1-SWSA standard for hydraulic hose fittings

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 in size 4 (1/4 inch inside diameter).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with high-pressure hose assembly practices. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Inspect the O-ring sealing surface for damage before assembly, and ensure the O-ring is properly seated to achieve a leak-free Seal-Lok connection. Torque the fitting according to the system designer or hose assembly manufacturer guidelines for the applicable thread size.
