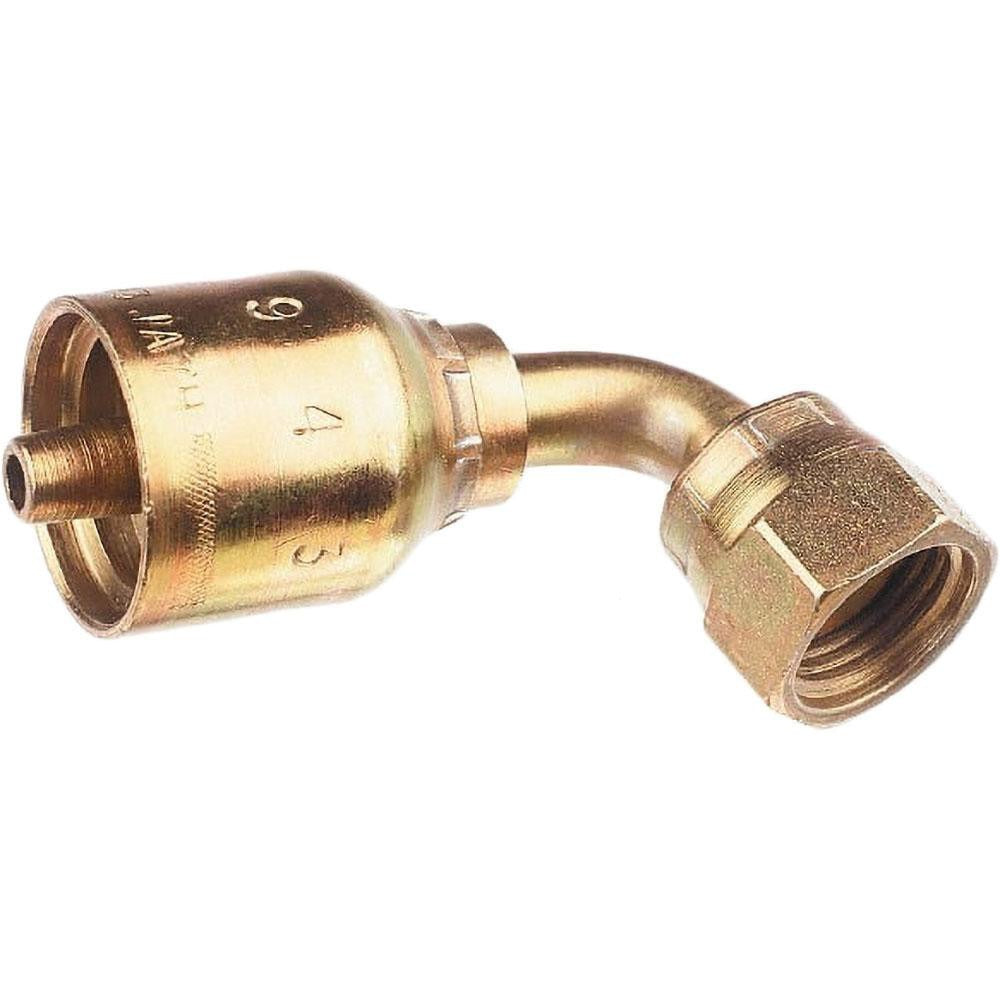

Parker 1J943-6-6 Female Seal-lok Swivel Elbow 3/8 in

Product Description

The PARKER 1J943-6-6 is a female Seal-Lok swivel elbow fitting designed for high-pressure hydraulic hose assemblies. It features a 90-degree elbow geometry with a 3/8 inch thread size and accepts hoses with a 0.375 inch inside diameter. Constructed from steel, this fitting uses a Seal-Lok face-seal connection type that provides a reliable, leak-resistant joint under pressure. It is used by hydraulic technicians and industrial maintenance professionals to connect hose ends to ports and components where a 90-degree directional change is required. The swivel design allows for easier hose routing and alignment during assembly.

This fitting is suited for mobile hydraulic systems, industrial machinery, and fluid power applications where steel fittings with face-seal technology are specified. The 90-degree swivel elbow configuration is commonly installed in tight or confined spaces where straight fittings cannot be routed cleanly. It is compatible with a wide range of Parker hose series and is packaged individually for single-unit replacement or assembly work.

Key Features

• 90-degree elbow shape for directional hose routing in confined installations
• Female Seal-Lok face-seal connection type for leak-resistant joints
• Steel construction for durability in high-pressure hydraulic service
• 3/8 inch thread size with 0.375 inch hose inside diameter compatibility
• Swivel design simplifies hose alignment during assembly
• Compliant with ISO 12151-1 standards

Compatibility

Compatible with the following Parker hose series: 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the Seal-Lok face-seal surface and O-ring seating area for damage before assembly. Follow the hose and fitting manufacturer assembly procedures and applicable industry standards for proper torque and swage requirements.
