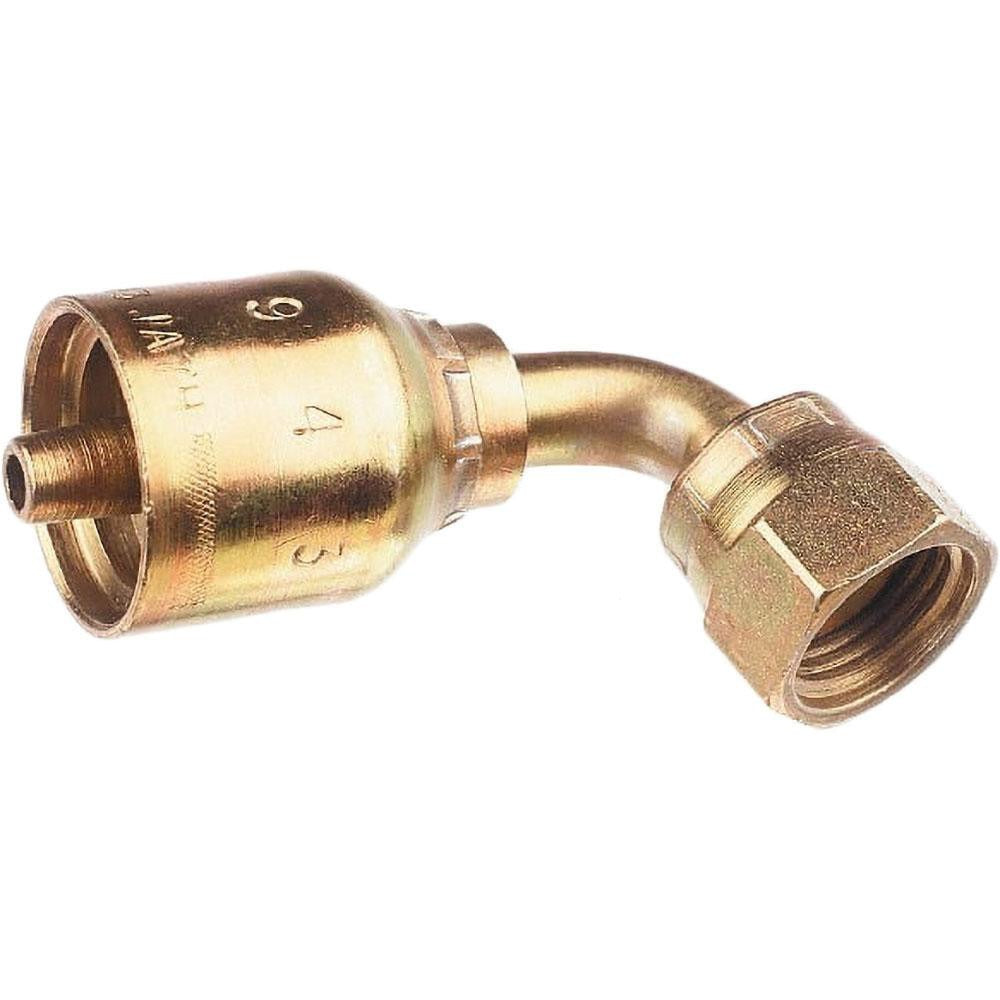

Parker 1J943-10-10 Female Seal-lok Swivel Elbow Fitting

Product Description

The PARKER 1J943-10-10 is a female Seal-Lok swivel elbow fitting engineered for use in hydraulic hose assemblies. Machined from steel, this Series 43 fitting accepts a hose with a 0.625 inch inside diameter (hose size 10) and terminates in a 5/8 inch threaded Seal-Lok connection. The 90-degree elbow geometry allows hose routing in tight or angled installations where straight fittings cannot be used. It is installed by hydraulic system technicians and fluid power specialists working on mobile equipment, industrial machinery, and related hydraulic circuits. The swivel design simplifies hose alignment during assembly and reduces torsional stress on the hose end.

This fitting is suited for hydraulic hose assemblies in industrial and mobile equipment applications where a 90-degree transition and Seal-Lok face-seal termination are required. It is compatible with a defined range of Parker hose series and is appropriate for systems where ISO 12151-1 face-seal fitting standards apply. Typical install scenarios include fabricating or replacing hose assemblies on hydraulic power units, cylinders, and related components.

Key Features

• 90-degree swivel elbow geometry for angled hose routing in confined spaces
• Female Seal-Lok (face seal) connection type for leak-resistant termination
• Steel construction for durability in hydraulic service environments
• Threaded connection interface compatible with Seal-Lok port ends
• Hose inside diameter of 0.625 inches (hose size 10)
• Meets ISO 12151-1 and California Proposition 65 compliance requirements

Compatibility

Compatible with the following Parker hose series: 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing any existing fittings or hose ends. Ensure the mating port face seal surface is clean and undamaged before assembly, as Seal-Lok connections rely on face-to-face contact for sealing integrity. Follow the fitting manufacturer torque guidelines and applicable standards for final assembly.
