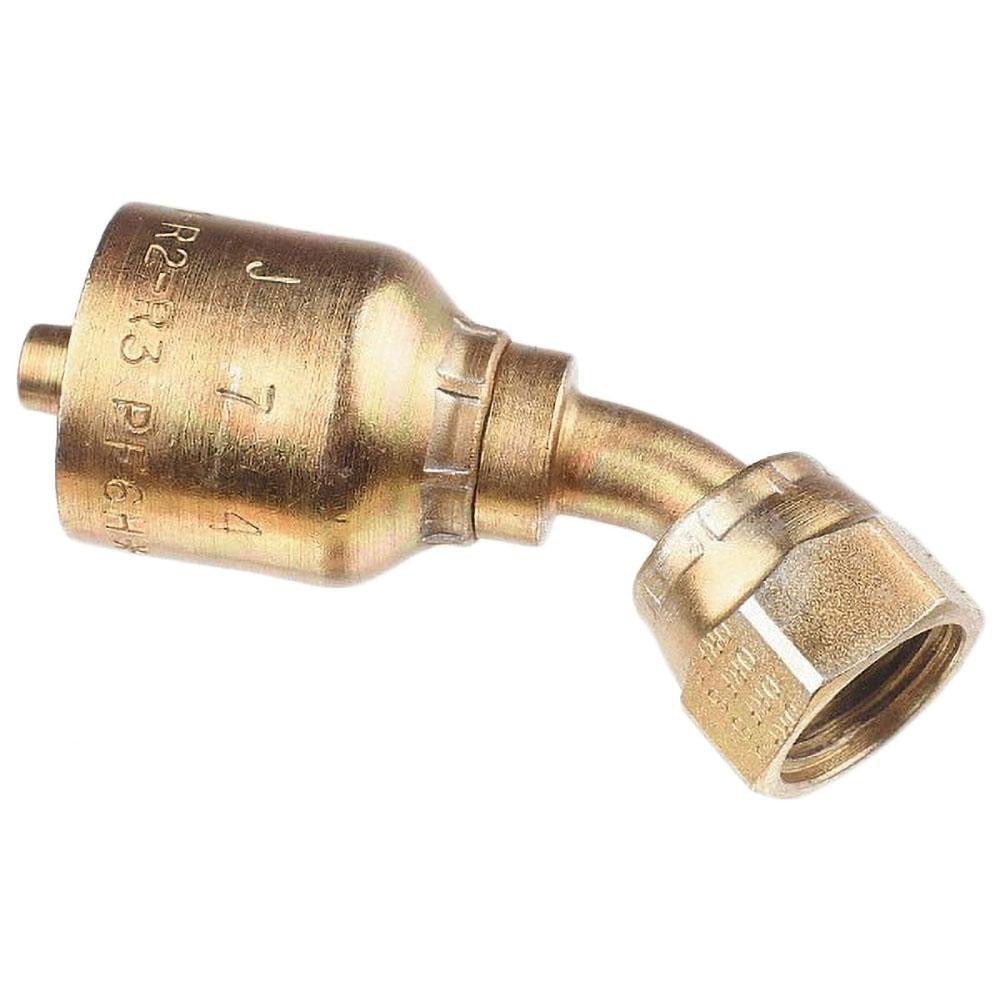

Parker 1J743-6-6 Female Swivel 45 Elbow Hydraulic Fitting

Product Description

The PARKER 1J743-6-6 is a female swivel 45-degree elbow hydraulic hose fitting designed for high-pressure fluid power systems. Built from steel with a Seal-Lok face-seal connection, this fitting provides a leak-resistant threaded interface between a hydraulic hose and a mating port. The 45-degree elbow geometry allows hose routing in tight or angled installations where a straight fitting would create excessive bend or strain. With a hose inside diameter of 0.375 inches and a 3/8-inch thread size, it suits a wide range of mobile and industrial hydraulic circuits. Installation is typically performed by hydraulic technicians and industrial maintenance personnel.

This fitting is rated for use in Series 43 hydraulic hose assemblies and is compatible with a broad range of Parker hose types. The Seal-Lok face-seal design makes it well suited for mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic plumbing where vibration and movement demand a reliable, non-leaking connection. The 45-degree swivel orientation helps reduce hose fatigue by allowing proper hose routing without kinking.

Key Features

• Female swivel 45-degree elbow configuration for angled hose routing in confined spaces
• Seal-Lok face-seal connection type for leak-resistant performance in high-vibration environments
• Steel construction for durability under high-pressure hydraulic service
• 3/8-inch thread size with 0.375-inch hose inside diameter for precise fitment
• Complies with ISO 12151-1 and California Proposition 65 standards
• Parker Series 43 fitting — sold individually (minimum order quantity: 1)

Compatibility

Designed for use with Parker 187 TC/ST, 302, 304, 387 TC/ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC/ST, 722 TC/ST, 787 TC/ST, 797 TC/ST, and 881 hydraulic hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect the Seal-Lok face-seal surface and mating port for nicks or contamination before assembly, as surface damage will compromise the seal. Torque to the fitting manufacturer's specifications using the appropriate crowfoot or open-end wrench — do not use pipe-thread sealant on face-seal fittings.
