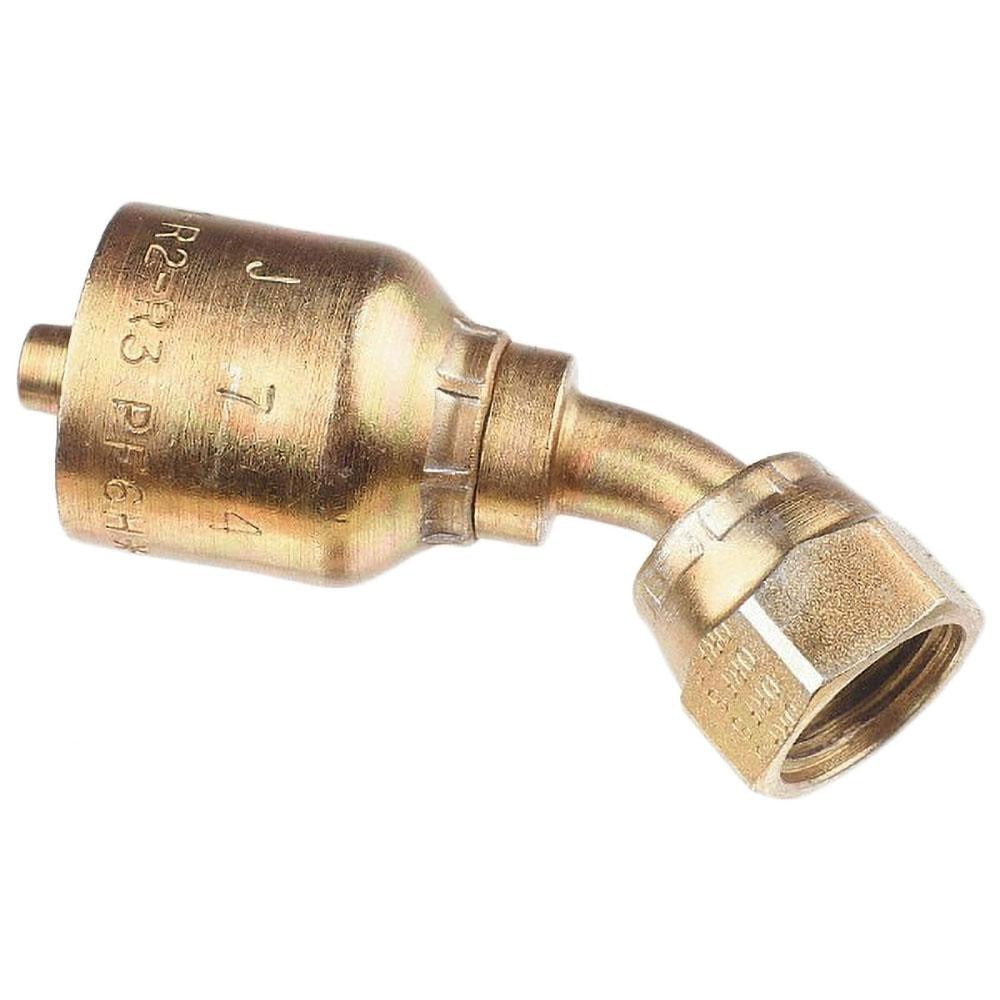

Parker 1J743-20-20 Hydraulic Hose Swivel 45 Elbow Fitting

Product Description

The PARKER 1J743-20-20 is a female swivel 45-degree elbow hydraulic hose fitting machined from steel and designed for use with a wide range of Parker hydraulic hoses. It connects at a 1-1/4 inch threaded port using a Seal-Lok interface, which provides a face-seal connection to minimize leak paths under high-pressure conditions. The hose inside diameter is 1.25 inches, corresponding to a hose size designation of 20. This fitting is installed by hydraulic system technicians and fluid power mechanics in mobile equipment, industrial machinery, and plumbing circuits where a 45-degree directional change is required at the hose-to-port junction.

This fitting is suited for applications in construction equipment, agricultural machinery, industrial hydraulic circuits, and other systems requiring a compact angled hose termination. It is compatible with Parker Series 43 fittings and is appropriate for installations where Seal-Lok face-seal threading is specified. The 45-degree elbow geometry helps route hoses in tight spaces and reduces strain at connection points. Installers working on mobile hydraulic systems will find this fitting particularly useful where straight adapters create clearance issues.

Key Features

• Female swivel 45-degree elbow configuration allows directional hose routing without rotating the hose body
• Seal-Lok face-seal thread interface reduces potential leak points compared to tapered thread connections
• 1-1/4 inch thread size with 1.25 inch hose inside diameter for high-flow hydraulic circuits
• Steel construction provides durability in high-pressure hydraulic service environments
• Meets ISO 12151-1 standard for hose fittings with swivel ends
• Compatible with an extensive range of Parker hose series for broad application coverage

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses. Belongs to Parker Series 43 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings, and verify the system has bled down to zero pressure. Seal-Lok face-seal fittings require proper seating of the O-ring against the flat face of the port; inspect the O-ring for damage before assembly and do not reuse damaged seals. Torque specifications and assembly procedures should follow Parker published guidelines for the Series 43 fitting and applicable system design standards.
