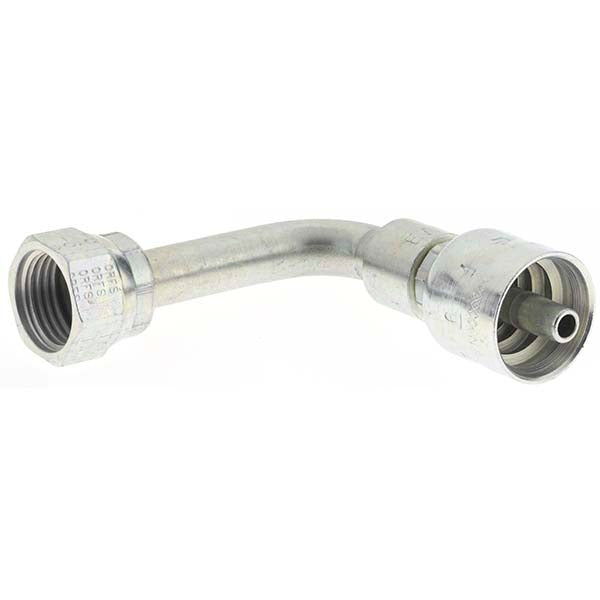

Parker 1J143-6-4 Female Seal-lok Swivel 90 Elbow 1/4 in

Product Description

The PARKER 1J143-6-4 is a female Seal-Lok swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects a 1/4-inch hydraulic hose to a port or component, allowing a clean 90-degree directional change in the fluid line without requiring the hose itself to bend sharply. Constructed from steel, this fitting is built to handle the mechanical stress and fluid pressure demands common in hydraulic systems. It is installed by hydraulic technicians and fluid power specialists in mobile equipment, industrial machinery, and other high-pressure hydraulic circuits.

This fitting is suited for use in hydraulic systems where routing constraints require a 90-degree transition at the hose end. The swivel design allows the fitting body to rotate during assembly, making it easier to align the hose with adjacent components without twisting the hose. It is commonly found in agricultural equipment, construction machinery, and industrial hydraulic power units wherever a 1/4-inch hose line must change direction at a connection point.

Key Features

• Female Seal-Lok swivel interface provides a reliable, leak-resistant connection at the port end
• 90-degree elbow configuration redirects hose routing without sharp hose bends
• Swivel body allows rotational adjustment during installation for easy alignment
• 1/4-inch hose size compatibility suits standard small-bore hydraulic lines
• Steel construction withstands hydraulic system pressure and mechanical wear

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using a 1/4-inch hose end with a Seal-Lok female swivel 90-degree elbow connection.

Installation Notes

This fitting should be installed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any hose fittings. Inspect the mating port seat and sealing surfaces for damage before assembly. Follow the equipment manufacturer and PARKER assembly guidelines for proper torque and swivel orientation to ensure a leak-free connection.
