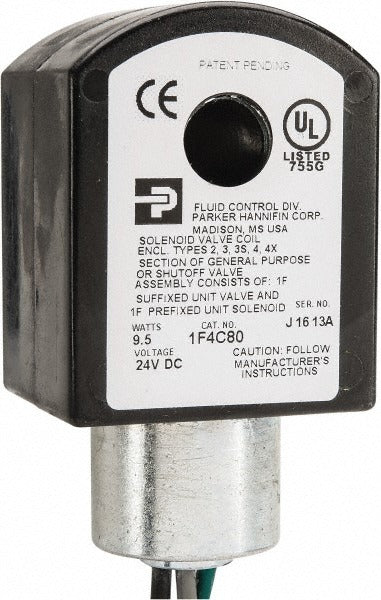

Parker 1F4C80 Solenoid Coil 24V Nema 4X Class F

Product Description

The PARKER 1F4C80 is a 24-volt DC solenoid coil designed for use with Parker Skinner Gold Ring Series solenoid valves. Rated at 9.5 watts and built to Class F insulation standards, this coil delivers reliable electromagnetic actuation in demanding service environments. The NEMA 4X enclosure rating means it is sealed against water ingress and corrosion, making it suitable for wet or washdown locations. The coil ships with an 18-inch lead length, allowing for straightforward field wiring without extensions in most installation layouts. Licensed HVAC technicians, plumbers, and industrial fluid-control technicians are the primary installers of this component.

This solenoid coil is intended for use with Parker Skinner Gold Ring Series valves in fluid control, refrigeration, pneumatic, and process piping applications. The NEMA 4X watertight rating makes it appropriate for both indoor and outdoor installations where moisture exposure is a concern. It is commonly installed in commercial refrigeration systems, compressed-air circuits, and process water lines where automated valve actuation is required.

Key Features

• 24-volt DC operation compatible with standard low-voltage control circuits
• 9.5-watt power draw for efficient solenoid actuation
• Class F insulation rating supports higher operating temperatures
• NEMA 4X enclosure provides watertight and corrosion-resistant protection
• 18-inch coil lead length simplifies field wiring connections
• Designed specifically for Parker Skinner Gold Ring Series solenoid valves

Compatibility

Designed for use with Parker Skinner Gold Ring Series solenoid valves as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified technician familiar with solenoid valve systems and applicable electrical codes including the NEC. De-energize the control circuit and isolate the fluid line before removing or installing the coil. Verify that the supply voltage matches the 24-volt DC rating of this coil before energizing. Do not energize the coil without the valve body assembled, as this can cause overheating.
