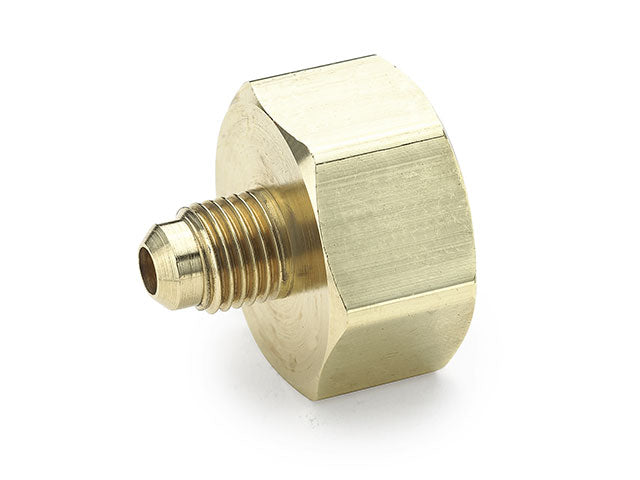

Parker 1F-4-12 Refrigerant Drum Adapter 1F

Product Description

The Parker 1F-4-12 is a refrigerant drum adapter designed for effective connections in HVAC systems. This adapter conforms to the specifications of SAE J512 and J513. It is suitable for use with various tubing materials, including copper, brass, aluminum, and steel that can be flared to 45 degrees. The robust design ensures reliable performance under tough conditions.

• Compatible with copper, brass, aluminum, and steel tubing
• Operates in a temperature range from -65 degrees Fahrenheit to +250 degrees Fahrenheit
• Pressure rating up to 1400 PSI

Product Highlights

This adapter facilitates efficient refrigerant transfer and maintains system integrity.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Outer Diameter 1: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 3/4 NPT
• Material: Brass
• UOM: EA
• Series: 45 Degree Flare
• Configuration Type: Adapter
• Configuration Sub-Type: Refrigerant Drum
• Operating Temperature: -65 degrees Fahrenheit to +250 degrees Fahrenheit
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010165
• Pressure Rating: 1400 PSI
