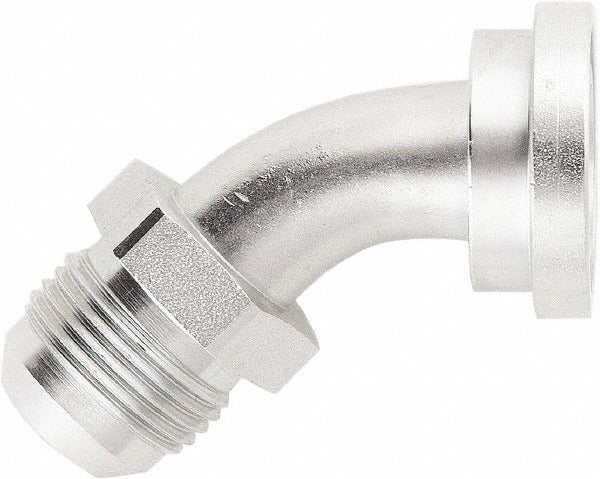

Parker 17T3-12-12 Sae Code 61 Flange 45 Deg Elbow Fitting

Product Description

The PARKER 17T3-12-12 is a steel hydraulic hose fitting designed for high-pressure fluid line connections in mobile and industrial hydraulic systems. It features a SAE Code 61 flange configuration at a 45-degree elbow angle, allowing directional routing of hose assemblies where straight fittings would cause interference or excessive bend stress. The male end uses a SAE (JIC) 37-degree flare thread sized at 1-1/16-12, accepting a 3/4-inch hose. Rated at 3,100 psi working pressure, this fitting suits demanding hydraulic circuits where leak-free performance is required. Hydraulic technicians and equipment mechanics install this fitting during hose assembly or system repair.

This fitting is appropriate for use in industrial machinery, agricultural equipment, construction equipment, and other mobile hydraulic applications where a 45-degree directional change is needed at the hose-to-port connection. The SAE Code 61 flange interface is commonly found on pumps, motors, valves, and manifolds operating at moderate to high pressures. Installation is typically performed by certified hydraulic technicians or qualified mechanics working on OEM or aftermarket hydraulic circuits requiring a 3/4-inch hose connection with a 1-1/16-12 male JIC thread end.

Key Features

• SAE Code 61 flange with 45-degree elbow geometry for directional hose routing
• Male SAE (JIC) 37-degree flare thread end, size 1-1/16-12
• 3/4-inch hose size compatibility
• 3,100 psi working pressure rating
• Steel construction for durability in high-pressure hydraulic service

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic hose assemblies requiring a SAE Code 61 flange 45-degree elbow with a 3/4-inch hose end and 1-1/16-12 male JIC 37-degree flare thread connection rated at 3,100 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or certified mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting, and allow the system to cool if recently operated. Follow SAE and equipment manufacturer torque and assembly guidelines for flange and JIC fittings. Inspect all mating surfaces for damage or contamination before assembly to prevent leaks at operating pressure.
