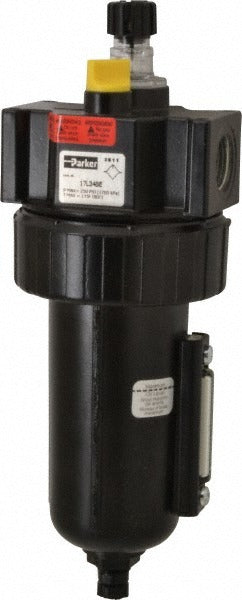

Parker 17L34BE Air Lubricator 90 Cfm 1/2 Inch Npt

Product Description

The PARKER 17L34BE is a standard compressed air lubricator designed to deliver controlled oil mist into pneumatic lines, protecting downstream tools, valves, actuators, and cylinders from wear and corrosion. Built for industrial air preparation systems, it features a 1/2 inch NPT port, a zinc body, and a metal bowl with a manual drain. The micro mist design provides fine, consistent lubrication at flow rates up to 90 CFM. A built-in sight glass allows technicians to monitor oil level without shutting down the line. This unit is part of the Parker Series 17L modular air preparation family, making it compatible with matching filter and regulator modules for FRL assembly.

This lubricator is suited for industrial and commercial pneumatic systems where downstream components require continuous lubrication. Typical applications include assembly lines, machine tools, pneumatic conveyors, and maintenance shop air systems. The modular connection design allows it to be integrated into a filter-regulator-lubricator (FRL) combination using compatible Series 17L components. It handles flow demands up to 90 CFM, making it appropriate for moderate to high-demand compressed air circuits running air-operated tools and actuators. Installation is handled by pipefitters, millwrights, and industrial maintenance technicians.

Key Features

• Micro mist lubrication delivers fine, consistent oil distribution into the airstream
• 1/2 inch NPT port supports flow up to 90 CFM
• Zinc body with metal bowl provides durable construction for industrial environments
• Sight glass included for visual oil-level monitoring without line shutdown
• Modular connection allows integration into Series 17L FRL assemblies
• Manual drain for controlled bowl servicing
• Nitrile seals rated for service down to 32 degrees F

Compatibility

Designed for use in the Parker Series 17L modular air preparation system. Modular connection is confirmed, allowing direct coupling with compatible Series 17L filter and regulator units to form an FRL assembly.

Installation Notes

Install by a qualified pipefitter or industrial maintenance technician following the system manufacturer guidelines and applicable OSHA compressed air safety requirements. Depressurize and isolate the air line completely before installing or servicing the lubricator. Apply thread sealant to NPT connections per standard practice, but do not over-tighten fittings into the zinc body. After installation, confirm oil level through the sight glass and verify there are no leaks before returning the system to full operating pressure.
