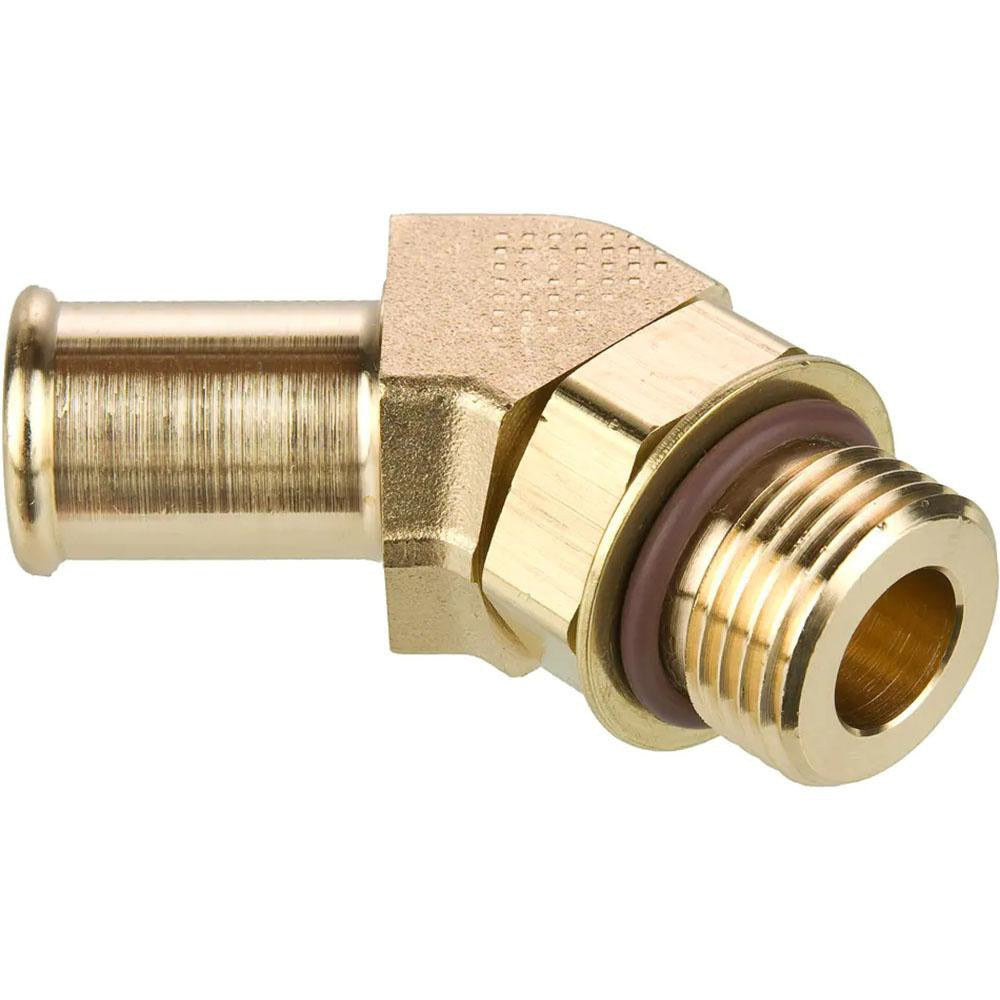

Parker 1795HB-12-8 Brass Elbow Hose Barb Fitting 3/4-16

Product Description

The PARKER 1795HB-12-8 is a brass elbow barbed hose fitting designed to connect flexible hose to a threaded port in fluid transfer systems. It features a 3/4-16 SAE straight thread on one end and a beaded 3/4-inch ID hose barb on the other, forming a 90-degree elbow configuration. The beaded barb design improves hose retention and reduces the risk of blowoff under pressure. Rated for service from -40 degrees F to 160 degrees F, this fitting suits hydraulic, pneumatic, and general fluid handling lines. It is installed by licensed plumbers, hydraulic technicians, and industrial maintenance professionals.

This fitting is appropriate for residential and light commercial fluid system assemblies where a directional change from a threaded port to flexible hose is required. Typical applications include hydraulic hose assemblies, cooling lines, and general industrial plumbing where a straight-thread port connects to 3/4-inch ID flexible hose. The elbow orientation helps route hose in tight or confined spaces while maintaining a secure, leak-resistant connection.

Key Features

• Beaded hose barb improves hose grip and resists blowoff on 3/4-inch ID hose
• 3/4-16 SAE straight thread end for direct port connection without pipe thread sealant
• 90-degree elbow body allows directional routing in restricted installations
• Brass construction provides corrosion resistance in water, oil, and many fluid media
• Wide temperature range: -40 degrees F to 160 degrees F (-40 degrees C to 71.1 degrees C)
• 7/8-inch hex head size allows standard wrench installation

Compatibility

Designed as an OEM-style replacement or service fitting for fluid systems requiring a 3/4-16 SAE straight thread port connection to 3/4-inch ID flexible hose with a 90-degree elbow transition.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or fluid system assembly. Depressurize and drain the system completely before removing or installing any fitting. SAE straight thread fittings seal at the O-ring or machined seat, not the threads, so do not apply thread sealant tape to the straight thread end. Tighten to the hex head using a correctly sized open-end or combination wrench and confirm the hose is fully seated past the bead before applying a clamp or retaining method.
