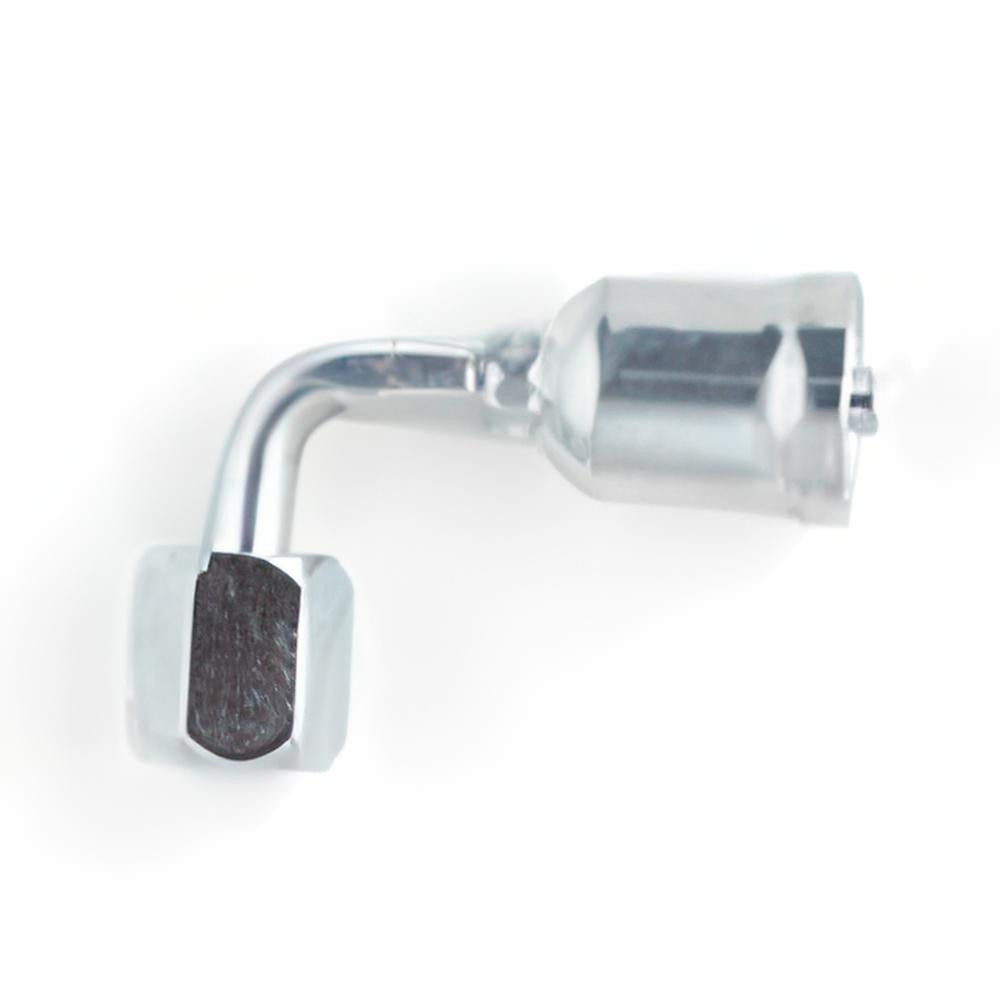

Parker 17926-8-8 Female Jic Swivel 45 Elbow Fitting

Product Description

The PARKER 17926-8-8 is a female JIC swivel 45-degree elbow fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects a hose with a size 8 designation and a 13/32-inch hose diameter to a 3/4-16 female SAE threaded port. The 45-degree elbow configuration allows routing hose lines in tight or angled installation environments where a straight fitting would create excessive bending or strain on the hose. It is installed by hydraulic system technicians and equipment mechanics working on mobile and industrial hydraulic circuits.

This fitting is suited for hydraulic plumbing applications in mobile equipment, industrial machinery, and fluid power systems where a female JIC swivel connection at a 45-degree angle is required. The swivel design allows the fitting body to rotate during assembly, enabling proper torque on the thread engagement without twisting the hose. It is commonly used in construction equipment, agricultural machinery, and industrial hydraulic power units where angled port exits are necessary for clean hose routing.

Key Features

• Female JIC swivel 45-degree elbow configuration for angled hose routing
• Steel construction for durability in hydraulic system environments
• Hose size 8 with 13/32-inch hose diameter
• 3/4-16 female SAE thread for standard port connections
• Swivel body allows fitting rotation during installation to prevent hose twist

Compatibility

Designed as an OEM-style hydraulic hose fitting for use with size 8 hydraulic hose in systems utilizing female SAE 3/4-16 threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or equipment mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Hand-tighten the fitting first to confirm proper thread engagement before applying final torque, and inspect threads for damage before assembly. Follow applicable fluid power industry standards and equipment manufacturer specifications for torque and assembly procedures.
