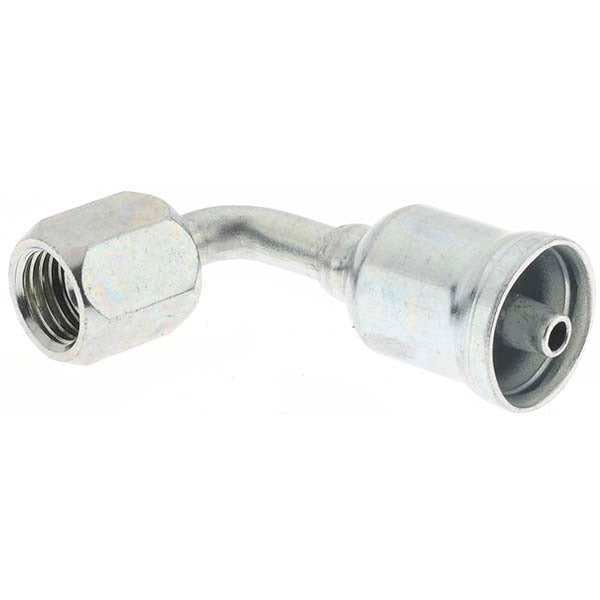

Parker 17926-4-4 Female Jic Swivel 45 Elbow 3/16 in

Product Description

The PARKER 17926-4-4 is a female JIC swivel 45-degree elbow fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects a 3/16-inch hose end to a 7/16-20 female SAE thread, allowing for angled routing in tight or space-constrained installations. The swivel design permits rotation during assembly, reducing hose twist and simplifying connections in hydraulic circuits. This fitting is installed by hydraulic system technicians and equipment mechanics working on mobile or industrial hydraulic lines where directional changes are required.

This fitting is suited for residential and commercial hydraulic applications where a 45-degree angle transition is needed at the hose-to-port connection. It is commonly used in mobile equipment, agricultural machinery, and industrial hydraulic systems. The 3/16-inch hose size and 7/16-20 thread are standard dimensions found across a wide range of low- to medium-pressure hydraulic circuits. Sold in packages of 5, it is practical for service shops stocking common fitting sizes for routine assembly and repair work.

Key Features

• 45-degree swivel elbow allows angled hose routing to reduce strain and simplify layout
• Female JIC swivel design permits rotation during assembly to prevent hose twist
• Steel construction for durability in hydraulic service environments
• 3/16-inch hose diameter with 7/16-20 female SAE thread connection
• Packaged in quantities of 5 for shop stocking and assembly use

Compatibility

Designed as an OEM-style replacement or assembly fitting for hydraulic hose systems using 3/16-inch hose ends with 7/16-20 female SAE thread ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and bleed the hydraulic system before removing or installing any fittings. Use appropriate wrenches and avoid over-tightening, which can damage the JIC seat or thread. Verify thread compatibility and hose size before assembly to ensure a leak-free connection.
