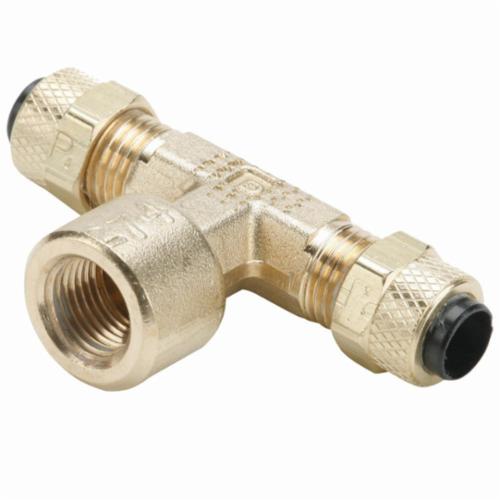

Parker 177P-4-2 Poly-Tite Compression Branch Tee 1/4 x 1/8 in

Product Description

Parker's Poly-Tite 177P-4-2 Compression Branch Tee enables quick installations in various piping systems. This fitting comes pre-assembled with its body, nut, and sleeve ready for use. The acetal copolymer sleeve effectively resists compression stress, ensuring durability and stability over time. The design prevents twisting during assembly, enhancing reliability. Suitable for repeated assembly and disassembly, it supports different tubing types.

This branch tee features a nominal size of one-fourth to one-eighth inch and is ideal for connecting tubes to female pipe threads.

• Pre-assembled components for faster installation.
• Compatible with various types of tubing including polyethylene and nylon.
• Black acetal copolymer sleeve resists UV damage and provides dimensional stability.

Product Highlights

This fitting offers a robust connection with a pressure rating of one hundred fifty psi and a temperature range of zero to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Parker
• MPN: 177P-4-2

Technical Specifications

• End Style: Tube x Female Pipe
• Fitting/Connector Type: Tee
• Length: 0.92 inches
• Material: Brass
• Nominal Size: 1/4 x 1/8 inches
• Pressure Rating: 150 psi
• Series: Poly-Tite 177P
• Temperature Rating: 0 to 150 degrees Fahrenheit
