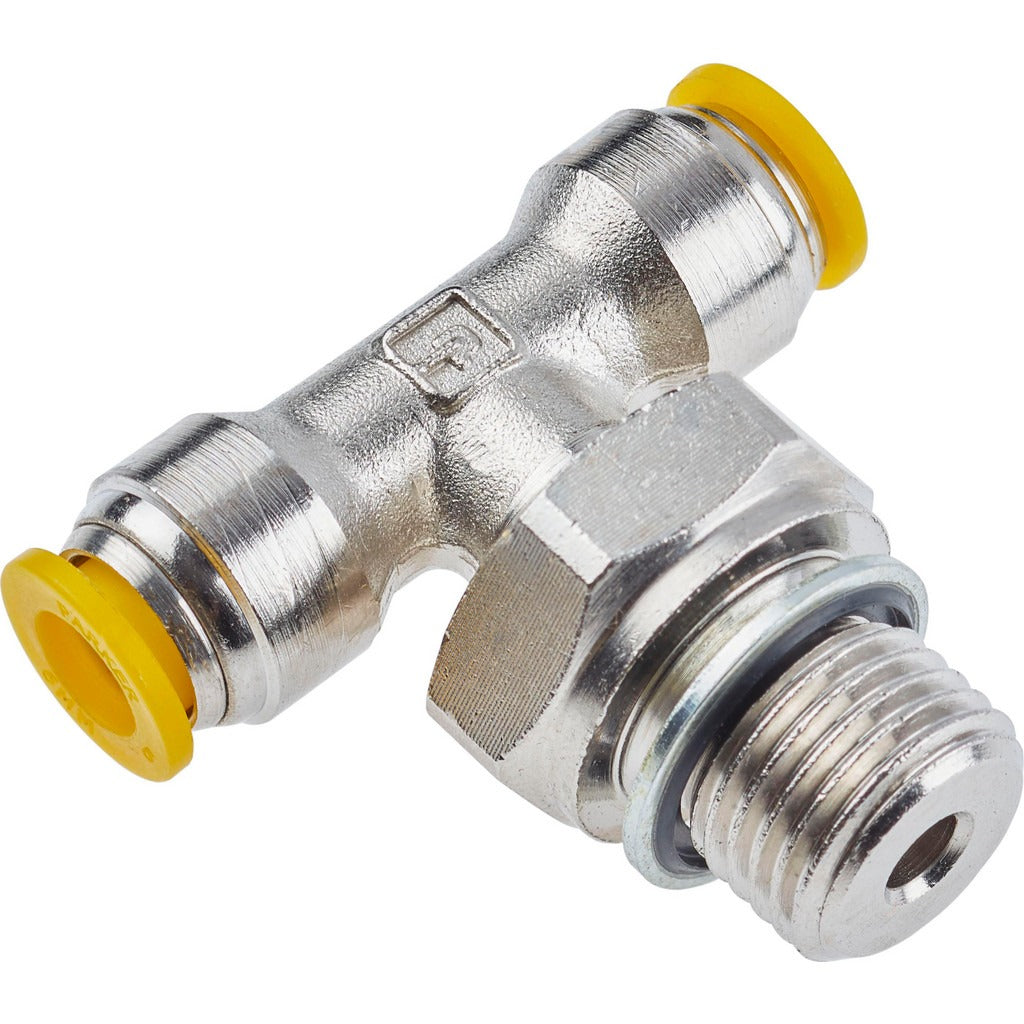

Parker 172PLP-12M-4G Swivel Male Branch Tee 12mm 300 Psi

Product Description

The PARKER 172PLP-12M-4G is a push-to-connect swivel male branch tee fitting designed for pneumatic and fluid-conveyance tubing systems. It connects two tube runs and one male-threaded port in a single body, allowing branch lines to be added without cutting into a rigid assembly. The fitting is constructed from nickel-plated brass with a silicone-free grease lubricant and a UL94 V-0 flame-resistant release button. It is rated for a maximum working pressure of 300 psi and handles operating temperatures from 0 degrees F to 200 degrees F. HVAC technicians, plumbers, and instrumentation technicians are the typical installers in both light commercial and residential applications.

This fitting is suited for use in pneumatic control lines, compressed-air distribution, refrigeration ancillary tubing, and general fluid-line branch connections where a swivel male port is needed for alignment flexibility. The 12mm outside diameter tube connection and BSPP male thread make it appropriate for metric-tube systems using British Standard Parallel Pipe thread ports. The silver nickel-plated brass body and yellow release button are standard visual identifiers for Parker push-to-connect fittings in the field.

Key Features

• Push-to-connect design on both tube ports for tool-free tube insertion and positive retention
• Swivel male branch port allows thread engagement without rotating the tubing assembly
• Nickel-plated brass construction resists corrosion in moderate-moisture environments
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• Silicone-free grease and UL94 V-0 flame-resistant release button

Compatibility

Designed for use with 12mm outside diameter tubing and BSPP male-threaded ports. Suitable as a direct replacement or new-installation fitting in Parker push-to-connect pneumatic and fluid-line systems using metric tube sizing.

Installation Notes

Depressurize and isolate the line completely before removing any existing fitting or inserting this tee. Ensure tube ends are cut square and deburred before insertion into the push-to-connect ports to achieve a proper seal. BSPP threads are parallel and require a bonded seal or sealant at the thread face for a leak-free connection. Installation is typically performed by a licensed HVAC technician, pipefitter, or instrumentation technician in accordance with applicable local codes.
