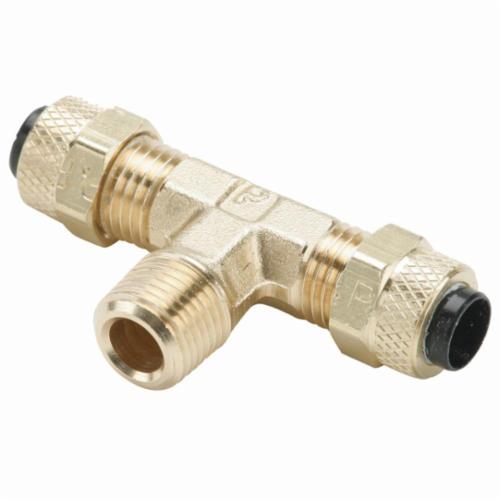

Parker 172P-6-2 Poly-Tite Compression Branch Tee 3/8 x 1/8 in

Product Description

Parker's Poly-Tite 172P Compression Branch Tee, MPN 172P-6-2, is designed for efficient installation. The fitting includes a pre-assembled body, nut, and sleeve, making it easy to set up. The acetal copolymer sleeve offers strong resistance to compression and stress. It also withstands ultraviolet exposure, enhancing durability.

This fitting's design allows the nut to rotate around the sleeve during tightening, preventing twisting of the tubing. It is suitable for repeated assembly and disassembly. Ideal for use with various tubing materials, including polyethylene and nylon.

• Pre-assembled for quick installation
• Rotating nut to prevent tubing twisting
• Resistant to UV rays and dimensional stability

Product Highlights

Parker's compression fittings are designed for reliable and efficient use in plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Parker®
• Part Number: 260993

Technical Specifications

• End Style: Tube x Male Pipe
• Fitting Type: Tee
• Length: 0.88 in
• Material: Brass
• Nominal Size: 3/8 x 1/8 in
• Pressure Rating: 150 psi
• Series: Poly-Tite 172P
• Temperature Rating: 0 to 150 deg F
