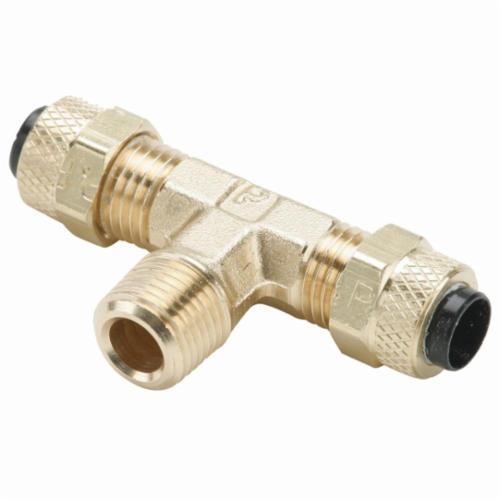

Parker 172P-5-2 Poly-Tite 172P Compression Branch Tee, 5/16 x 1/8 in, Tube x Male Pipe

Product Description

Parker's Poly-Tite 172P Compression Branch Tee is designed for quick installations in various piping applications. The product consists of a body, nut, and sleeve that come pre-assembled. The sleeve, made of acetal copolymer, provides durability and resists stress from compression. Its black acetal copolymer construction also protects against UV damage, ensuring high performance over time.

The unique design of the Poly-Tite fittings allows the nuts to rotate around the sleeve. This feature helps to avoid twisting, which can weaken plastic tubing during installation. The fitting allows for easy assembly and disassembly without the need for special tools.

• Pre-assembled for fast installation
• Resists UV damage and maintains dimensional stability
• Rotating nut design prevents tubing twisting

Product Highlights

The Poly-Tite 172P is ideal for various tubing types including polyethylene and nylon. It supports easy maintenance and long-term reliability.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 260992

Technical Specifications

• End Style: Tube x Male Pipe
• Fitting/Connector Type: Tee
• Length: 0.83 in
• Material: Brass
• Nominal Size: 5/16 x 1/8 in
• Pressure Rating: 150 psi
• Series: Poly-Tite 172P
• Temperature Rating: 0 to 150 deg F
