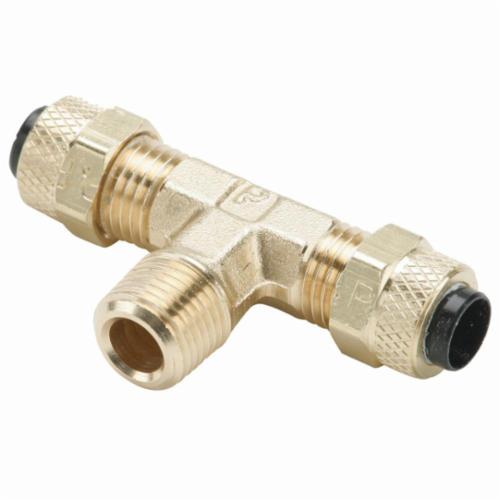

Parker 172P-4-2 Poly-Tite Compression Branch Tee 1/4 x 1/8 in

Product Description

The Parker Poly-Tite Compression Branch Tee, MPN 172P-4-2, is designed for efficient fluid and gas transfer. The fitting features a pre-assembled body, nut, and sleeve for quicker installations. The sleeve, made from acetal copolymer, offers high resistance to stress and UV damage. It helps maintain the integrity of plastic tubing while providing ease of assembly and disassembly. This tee fitting is compatible with various tubing materials.

• Pre-assembled body, nut, and sleeve
• Resistant to UV rays and dimensional changes
• Compatible with multiple tubing types

Product Highlights

This fitting is suitable for pipe systems requiring reliable connections and can handle a pressure rating of up to 150 psi.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker Hannifin

Technical Specifications

• Nominal Size: 1/4 x 1/8 in
• End Style: Tube x Male Pipe
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Fitting/Connector Type: Tee
• Length: 0.84 in
• Series: Poly-Tite 172P
