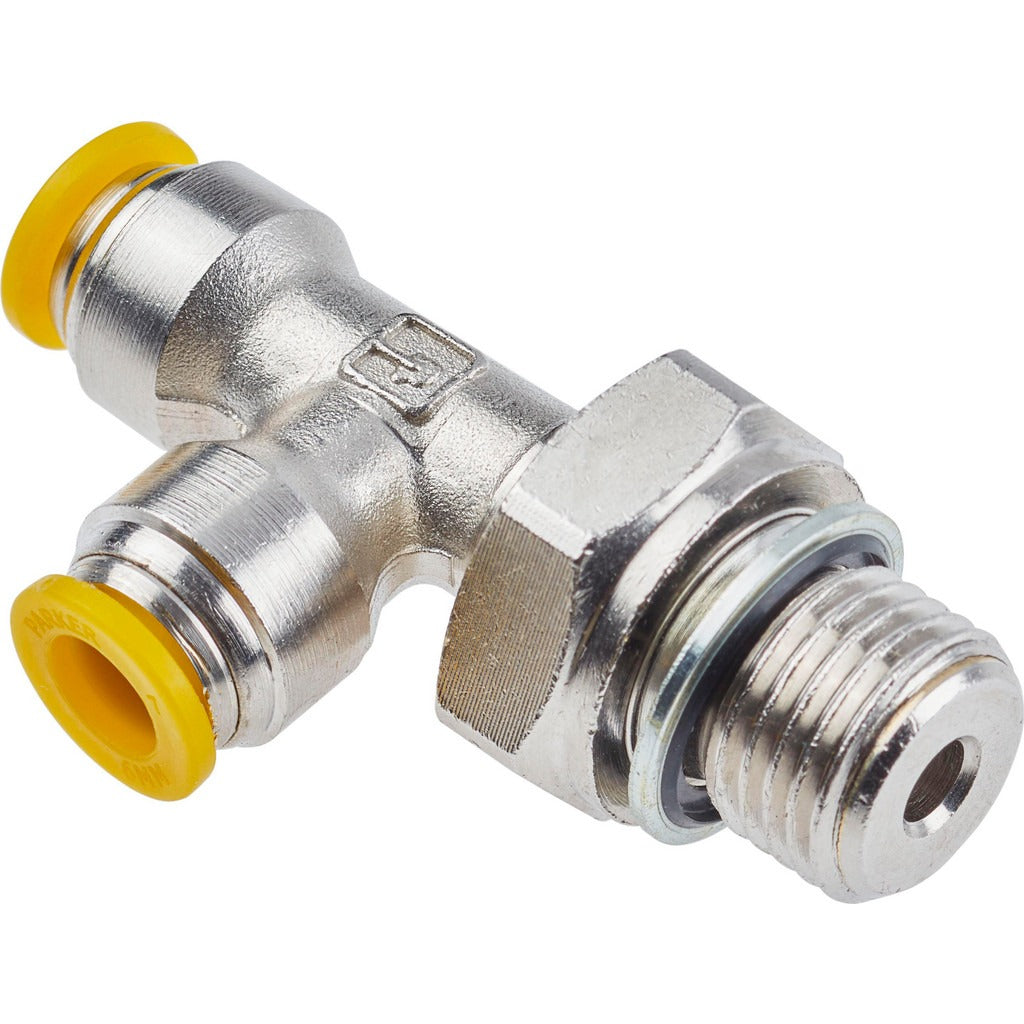

Parker 171PLP-6M-2G Swivel Male Run Tee 6mm 300 Psi Brass

Product Description

The PARKER 171PLP-6M-2G is a push-to-connect swivel male run tee fitting designed for tube-to-tube-to-male inline connections in pneumatic and fluid systems. Constructed from nickel-plated brass, it accepts 6mm outside diameter tubing on both run ports and terminates in a BSPP male thread connection. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The yellow release button identifies the push-to-connect collet, allowing tools-free tube insertion and field removal without special equipment. Silicone-free grease lubrication makes it suitable for environments where silicone contamination is a concern. HVAC, refrigeration, and pneumatic technicians install this fitting where a branch or directional change is needed in a tubing run.

This fitting is suited for light industrial, commercial HVAC, and pneumatic control applications requiring a reliable inline tee with a swivel male outlet. The swivel feature allows the male thread to rotate during installation, reducing torque stress on connected tubing and enabling easier alignment in tight spaces. It meets the UL94 V-0 flame resistance standard, making it appropriate for installations where flame-rated components are specified. Technicians working with 6mm OD tubing in instrument air, control, or process lines will find this fitting compatible with standard push-to-connect system configurations.

Key Features

• Push-to-connect collet on both tube ports accepts 6mm OD tubing without tools
• Swivel male thread outlet simplifies alignment and reduces installation torque on tubing
• Nickel-plated brass construction provides corrosion resistance in typical service environments
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• Silicone-free grease lubricant suitable for silicone-sensitive systems
• Meets UL94 V-0 flame resistance standard

Compatibility

Designed for use with 6mm outside diameter push-to-connect tubing in pneumatic and fluid control systems using BSPP male thread connections. Verify thread form and tubing OD before installation.

Installation Notes

Installation is performed by pneumatic, HVAC, or instrumentation technicians. Depressurize and isolate the system completely before removing or installing any fittings. Insert tubing fully into the collet until it seats; to remove, press the release button and pull the tube straight out. BSPP threads are parallel and require appropriate thread sealant or sealing washers — do not use NPT fittings or sealants interchangeably with BSPP connections.
