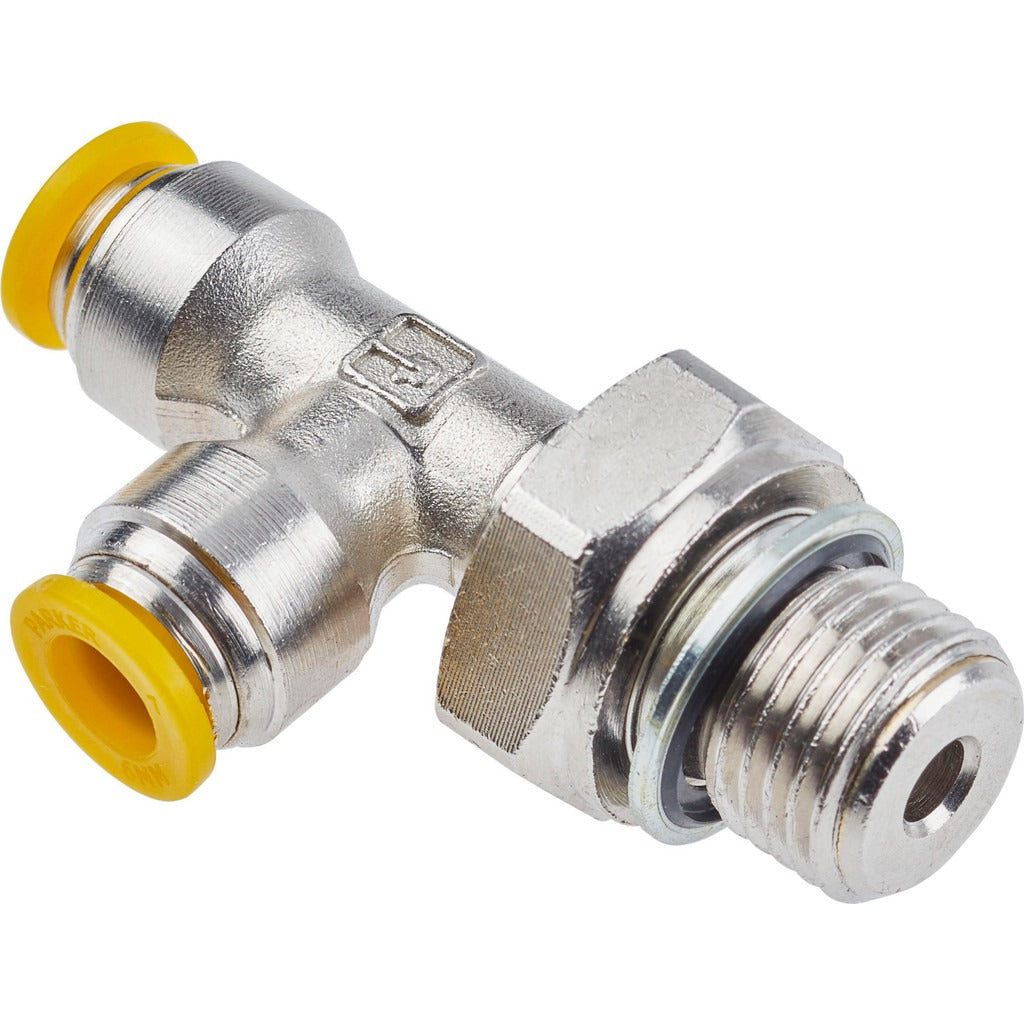

Parker 171PLP-10M-4G Swivel Male Run Tee Push-to-connect

Product Description

The PARKER 171PLP-10M-4G is a push-to-connect swivel male run tee fitting designed for pneumatic and fluid distribution lines requiring a reliable inline branch connection. Constructed from nickel-plated brass, it accepts 10mm outside diameter tubing on the tube ports and terminates with a BSPP male thread on the branch port. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. It ships with silicone-free grease and meets the UL94 V-0 flame resistance standard. Licensed plumbers, HVAC technicians, and industrial piping professionals install this fitting in compressed air, water, and compatible fluid systems.

This fitting is suited for residential and light commercial installations where a push-to-connect inline tee with a swivel male branch is required. The swivel feature allows the male thread to be oriented independently of the tube ports, simplifying routing in tight panel or equipment enclosures. It is appropriate for compressed air distribution, HVAC equipment pneumatic controls, and general fluid handling lines using 10mm OD tubing with a BSPP threaded port connection.

Key Features

• Push-to-connect tube ports accept 10mm OD tubing for tool-free installation and removal
• Swivel male branch port allows independent thread orientation without rotating the body
• Nickel-plated brass construction resists corrosion in pneumatic and compatible fluid service
• 300 psi maximum working pressure rating for compressed air and fluid distribution
• Rated for service from 0 degrees F to 200 degrees F
• Silicone-free grease applied at factory; meets UL94 V-0 flame resistance standard

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and fluid systems using 10mm OD tubing and BSPP male threaded ports.

Installation Notes

Installation should be performed by a qualified HVAC technician, licensed plumber, or industrial piping professional. Depressurize and isolate the line completely before removing or installing any fitting. Ensure tubing is cut square and deburred before inserting into the push-to-connect ports to achieve a proper seal. Verify that the mating BSPP thread is clean and apply appropriate thread sealant per the system manufacturer and applicable plumbing code requirements.
