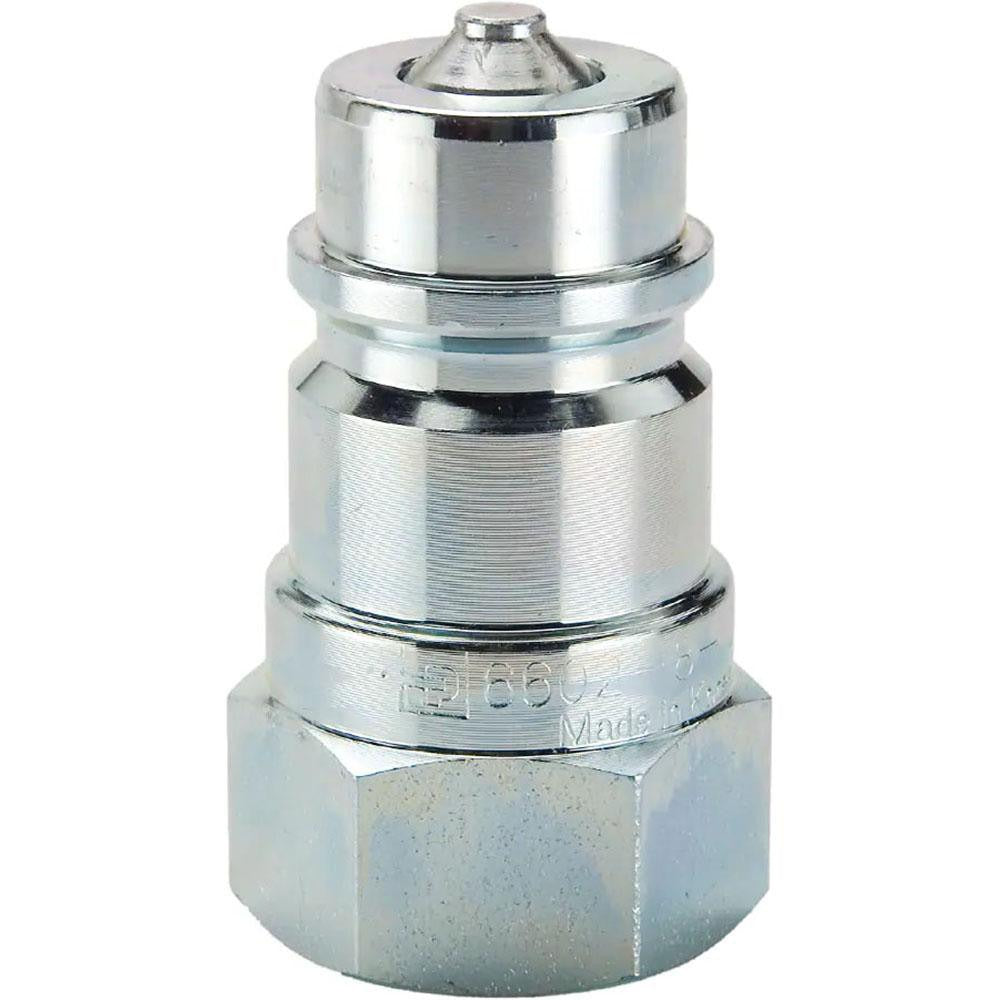

Parker 1717715 Hydraulic Hose Fitting 4000 Psi 1/2 Inch

Product Description

The PARKER 1717715 is a female pipe rigid fitting designed for hydraulic hose assemblies operating at up to 4,000 psi maximum working pressure. Built from steel with a straight body profile, this fitting uses NPTF threaded connections to create a pressure-tight seal without sealant tape in most applications. The 1/2 inch hose size and 1-1/16 inch thread size make it a straightforward specification match for mobile hydraulic circuits. It is part of the Parker 6600 Series and supports a maximum flow rate of 12.00 GPM. Hydraulic technicians and fleet mechanics working on mobile equipment are the primary installers.

This fitting is rated for use in mobile applications, including snow plows and truck trailer hydraulic connections. The straight configuration simplifies routing in tight installations where angled fittings are not required. With an overall length of 2.3 inches and a body diameter of 1/2 inch, it fits within compact manifold and hose-end assemblies common in vehicle-mounted hydraulic systems. The NPTF thread form meets ISO 7241-1 Series A standards, ensuring dimensional compliance across compatible equipment.

Key Features

• 4,000 psi maximum working pressure for demanding mobile hydraulic service
• NPTF threaded connection provides a dry-seal fit without relying on sealant alone
• Steel construction rated for high-pressure fluid power environments
• Straight body shape simplifies hose routing in space-constrained installations
• Maximum flow rate of 12.00 GPM suits typical mobile circuit demands
• Meets ISO 7241-1 Series A standards for dimensional consistency

Compatibility

Designed for use in mobile applications including snow plows and truck trailer hydraulic connections as specified by the manufacturer. Part of the Parker 6600 Series hydraulic fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with high-pressure fluid power systems. Depressurize the hydraulic circuit fully and relieve any residual stored pressure before removing or installing fittings. NPTF threads are designed for dry-seal assembly, but verify the application requirement before applying thread sealant. Inspect threads for damage before assembly and torque to the fitting manufacturer's specification for the applicable thread size and material.
