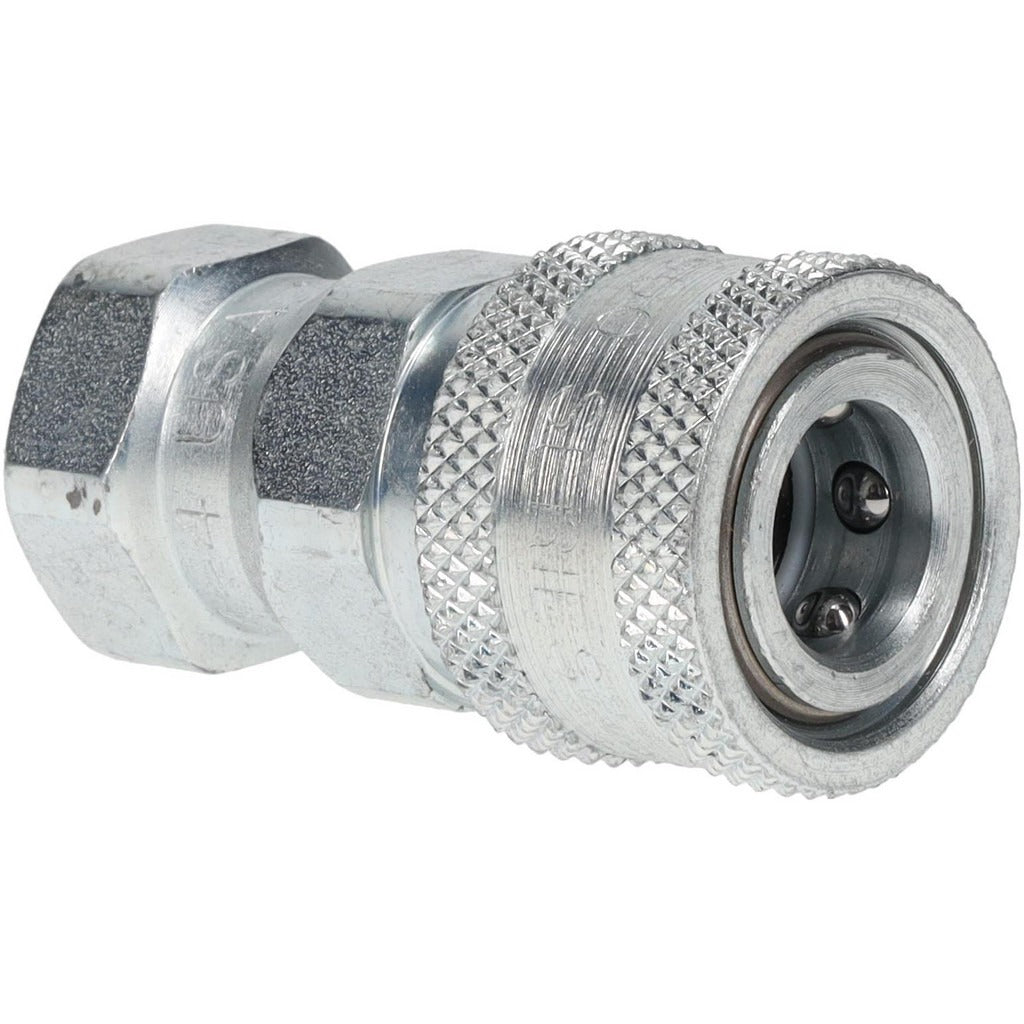

Parker 1717100 Hydraulic Hose Fitting 5000 Psi 1/4 in Nptf

Product Description

The PARKER 1717100 is a female pipe rigid fitting designed for hydraulic hose assemblies operating at up to 5,000 psi maximum working pressure. Manufactured from steel with a straight, threaded NPTF connection, this fitting provides a leak-resistant mechanical seal without the need for additional thread sealant tape in properly machined ports. At 1.85 inches overall length with a 1/4-inch body diameter and 1/4-inch thread size, it is a compact, high-pressure component suited for use in mobile hydraulic circuits. The 1717100 is part of Parker's 6600 Series and conforms to ISO 7241-1 Series A standards. Licensed hydraulic technicians and mobile equipment mechanics are the typical installers.

This fitting is rated for demanding field applications including mobile hydraulic equipment, snow plow hydraulic systems, and truck and trailer hydraulic connections. The 1/4-inch hose size and 3.00 GPM maximum flow rate make it appropriate for lower-flow hydraulic circuits common in auxiliary and implement control systems. Its straight configuration simplifies routing in tight plumbing layouts typical of vehicle-mounted hydraulic installations.

Key Features

• 5,000 psi maximum working pressure for high-demand mobile hydraulic service
• NPTF threaded connection provides a dry-seal mechanical fit
• Straight body configuration for direct inline hose-to-port connections
• Steel construction for durability in outdoor and mobile environments
• Conforms to ISO 7241-1 Series A standards
• Compact 1.85-inch overall length suits space-constrained installations

Compatibility

Designed for use with mobile hydraulic applications, snow plows, and truck and trailer hydraulic connections requiring a 1/4-inch NPTF female pipe rigid fitting rated to 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mobile equipment mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. NPTF threads are designed for dry-seal assembly; inspect port threads for damage before installation to ensure a proper seal. Follow the equipment manufacturer's torque and assembly guidelines applicable to 1/4-inch NPTF steel fittings.
