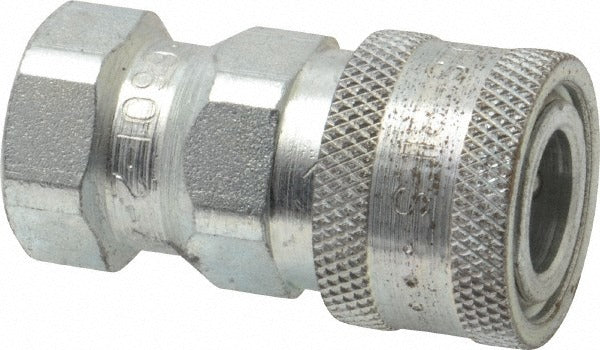

Parker 1717041 Hydraulic Hose Female Pipe Rigid Fitting 5000 Psi

Product Description

The PARKER 1717041 is a female pipe rigid fitting designed for hydraulic hose assemblies operating at up to 5,000 psi working pressure. Built from steel with a straight, threaded NPTF connection, this fitting accepts a 1/4 inch hose size and a 1/8 inch thread size. It is part of the Parker 6600 Series and is engineered for demanding mobile hydraulic circuits where a leak-free, rigid pipe connection is required. The overall length is 1.85 inches and the body diameter is 1/4 inch. Licensed hydraulic technicians and fleet mechanics are the typical installers for this component.

This fitting is suited for mobile hydraulic applications including snow plows and truck-trailer connections. The straight configuration simplifies inline routing where hose-to-port alignment is direct and space is not a constraint. It meets ISO 7241-1 Series A standards, making it appropriate for systems requiring documented compliance. The 1/8 inch NPTF thread provides a dry-seal connection that does not rely on sealant tape alone, which is preferred in vibration-prone mobile equipment environments. Maximum flow rate is 3.00 GPM.

Key Features

• 5,000 psi maximum working pressure for high-demand hydraulic circuits
• NPTF dry-seal thread on 1/8 inch port — no separate sealant required for pressure integrity
• Steel construction for durability in mobile and outdoor service environments
• Straight body shape simplifies inline hose routing and assembly
• Meets ISO 7241-1 Series A standards for documented system compliance
• Compact overall length of 1.85 inches suits tight installation spaces

Compatibility

Designed for use with mobile applications including snow plows and truck-trailer hydraulic connections. Fits 1/4 inch hose with a 1/8 inch NPTF threaded port. Part of the Parker 6600 Series hydraulic fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. NPTF threads are designed as dry-seal connections, but inspect threads carefully for damage before assembly and torque to the fitting manufacturer's specifications for the port material. After installation, cycle the system at low pressure first and inspect all connections for leaks before returning to full operating pressure.
