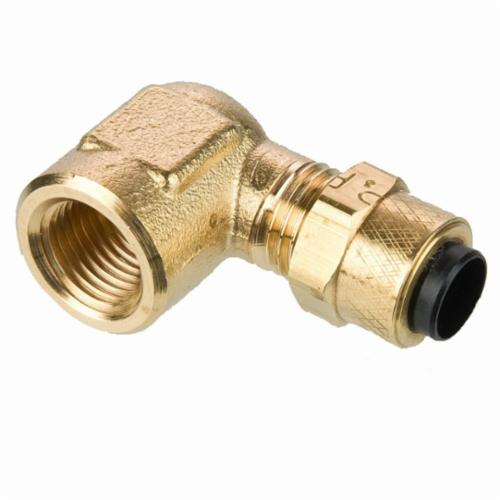

Parker 170P-8-6 Poly-Tite 170P Tube to Pipe Elbow 1/2 x 3/8 in Compression x Female Pipe

Product Description

The Parker Poly-Tite 170P-8-6 is designed for quick assembly in various piping applications. This fitting features a pre-assembled body, nut, and sleeve, ensuring fast installation. The material choice of acetal copolymer provides resistance to stress from compression and UV ray damage. It allows the nuts to rotate, preventing the tubing from twisting and weakening. The elbow design makes it versatile for multiple configurations.

• Pre-assembled for quick installation
• Made from durable acetal copolymer
• Can be reused multiple times

Product Highlights

This elbow fitting supports various tubing types and simplifies connections. It is ideal for use in pneumatic systems, ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Brand: Parker

Technical Specifications

• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1/2 x 3/8 in
• End Style: Compression x Female Pipe
• Length: 1.13 in
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Color: Black
• Dimensions: 1.19 in W
• Series: Poly-Tite 170P
