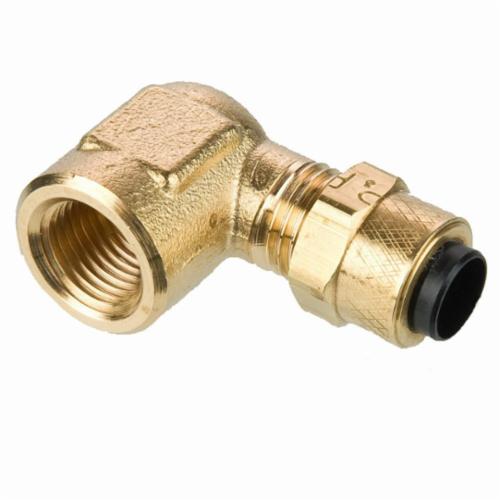

Parker 170P-6-4 Poly-Tite Tube to Pipe Elbow 3/8 x 1/4 in

Product Description

Parker's Poly-Tite fittings provide efficient installation for tube to pipe connections. The fitting includes a body, nut, and sleeve, all pre-assembled. The acetal copolymer sleeve is engineered to reduce stress from compression and is resistant to UV light. This design ensures minimal twisting and preserves the integrity of the tubing during assembly. Poly-Tite fittings can be reassembled multiple times without compromising quality.

• Fitting type: 90 degree elbow
• Nominal size: 3/8 x 1/4 inch
• Material: brass

Product Highlights

This fitting is ideal for various applications that require reliable pipe connections.

Product Information

Standard Information

• Series: Poly-Tite 170P
• Pressure Rating: 150 psi

Technical Specifications

• Color: Black
• Dimensions: 1 inch Wide
• End Style: Compression x Female Pipe
• Fitting/Connector Type: 90 degree elbow
• Length: 0.69 inches
• Material: Brass
• Nominal Size: 3/8 x 1/4 inch
• Temperature Rating: 0 to 150 degrees Fahrenheit
