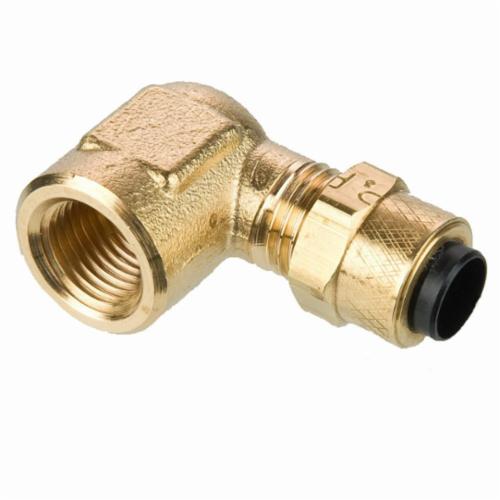

Parker 170P-4-4 Tube to Pipe Elbow, 1/4 in Compression x Female Pipe

Product Description

Parker's Poly-Tite 170P Tube to Pipe Elbow, MPN 170P-4-4, is engineered for fast installation. It features a pre-assembled body, nut, and sleeve, allowing for quick setup. The acetal copolymer sleeve resists compression stress and UV damage, maintaining stability under various conditions. The design ensures that the nut rotates around the sleeve during tightening to avoid twisting of the plastic tubing. This product is suitable for repeated assembly and disassembly.

• 1/4 inch nominal size with a 90-degree elbow design
• Made from durable brass materials
• Pressure rated up to 150 psi, suitable for a wide temperature range

Product Highlights

This fitting is a reliable choice for connecting tubing in pneumatic systems. It works well with various compatible tubing materials, making it versatile for different applications.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Brand: Parker

Technical Specifications

• Color: Black
• Dimensions: 1 inch width
• End Style: Compression x Female Pipe
• Fitting/Connector Type: 90-degree elbow
• Length: 0.69 inches
• Material: Brass
• Nominal Size: 1/4 inch
• Pressure Rating: 150 psi
• Series: Poly-Tite 170P
• Temperature Rating: 0 to 150 degrees Fahrenheit
