Parker 170CA-4-2 Compression Female Elbow 1/8-27 Fnpt

Product Description

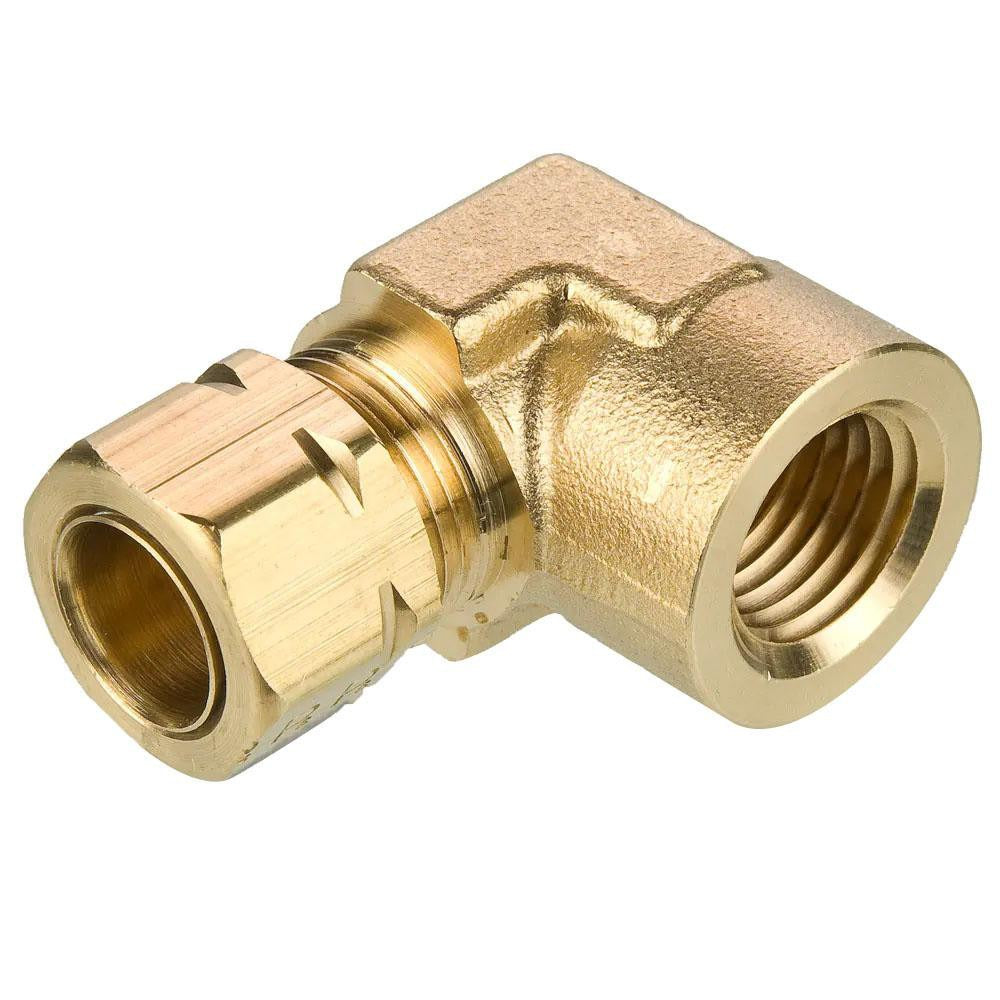

The PARKER 170CA-4-2 is a brass compression tube female elbow fitting designed to connect compression tubing to a female NPT port at a 90-degree angle. Rated to 1400 psi maximum working pressure, it handles a temperature range from -65 degrees F to 250 degrees F, making it suitable for demanding fluid and gas line applications. The fitting features a 1/8-27 NPTF thread on the female end with a compression connection on the tube end. It is installed by licensed plumbers, HVAC technicians, and instrumentation technicians working on refrigerant, pneumatic, hydraulic, or fluid-transfer systems.

This fitting is suited for use in residential, commercial, and light industrial applications where a directional change is needed between a compression tube line and a female NPT port. Common install scenarios include instrument tubing runs, refrigerant piping, compressed air systems, and hydraulic control lines. The 90-degree elbow configuration reduces stress on tubing at direction changes and keeps installations compact in tight spaces.

Key Features

• 1400 psi maximum working pressure for demanding fluid and gas service
• Operating temperature range from -65 degrees F to 250 degrees F
• Brass construction provides corrosion resistance and reliable sealing
• 1/8-27 NPTF female thread for leak-free pipe connections
• Compression x FNPT end connections allow quick, reliable tube attachment
• 90-degree elbow geometry reduces tubing stress at directional changes

Compatibility

Designed as an OEM-style compression tube fitting for use in plumbing, HVAC, pneumatic, and instrumentation systems requiring a 1/8-27 FNPT female port connection with a compression tube inlet.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified instrumentation technician. Shut off and depressurize the system completely before replacing or installing any compression fitting. Ensure the compression ferrule and nut are properly seated before tightening to avoid leaks. Follow applicable IPC or IFGC guidelines for the fluid or gas media being conveyed.
