Parker 16L22BE Air Lubricator 60 Cfm 3/8 Inch Npt

Product Description

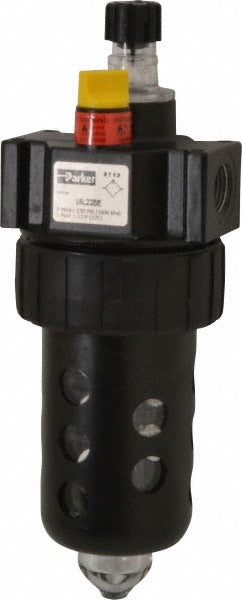

The PARKER 16L22BE is an intermediate micro mist compressed air lubricator designed to deliver controlled oil mist lubrication to pneumatic tools, cylinders, valves, and air-actuated equipment downstream in a compressed air system. Built around a zinc body and a polycarbonate bowl with a metal bowl guard, this Series 16L unit handles flow rates up to 60 CFM through a 3/8 inch NPT port. It includes a sight glass for visual oil-flow confirmation during operation. Licensed pneumatic system technicians and industrial maintenance mechanics typically specify and install this component as part of a filter-regulator-lubricator (FRL) assembly.

This lubricator suits intermediate-duty compressed air applications in industrial, commercial, and light manufacturing environments. The modular design allows it to be combined with compatible Parker Series 16 filter and regulator bodies to form an inline FRL train. With a minimum working temperature of 32 degrees F, it is suited for indoor and temperature-controlled shop environments. The 3/8 inch NPT end connections make it compatible with standard compressed air plumbing at typical shop-line pressures.

Key Features

• Micro mist lubrication type for fine, consistent oil distribution to downstream pneumatic components
• 60 CFM flow capacity through a 3/8 inch NPT port
• Zinc body construction for durability in industrial service environments
• Polycarbonate bowl with metal bowl guard for oil-level visibility and impact protection
• Integrated sight glass allows visual confirmation of lubrication flow without disassembly
• Modular connection design supports inline FRL assembly with compatible Series 16 components
• Nitrile seals rated for compatibility with petroleum-based lubricating oils

Compatibility

Designed for use in Parker Series 16L compressed air FRL systems with 3/8 inch NPT connections. Modular connection support allows integration with compatible Series 16 filter and regulator units.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance mechanic. Depressurize and lock out the compressed air supply before installing or servicing this lubricator. Ensure the unit is installed with the bowl oriented downward and airflow direction matches the arrow marked on the body. Follow applicable OSHA and facility-specific lockout/tagout (LOTO) procedures whenever working on pressurized air lines.
