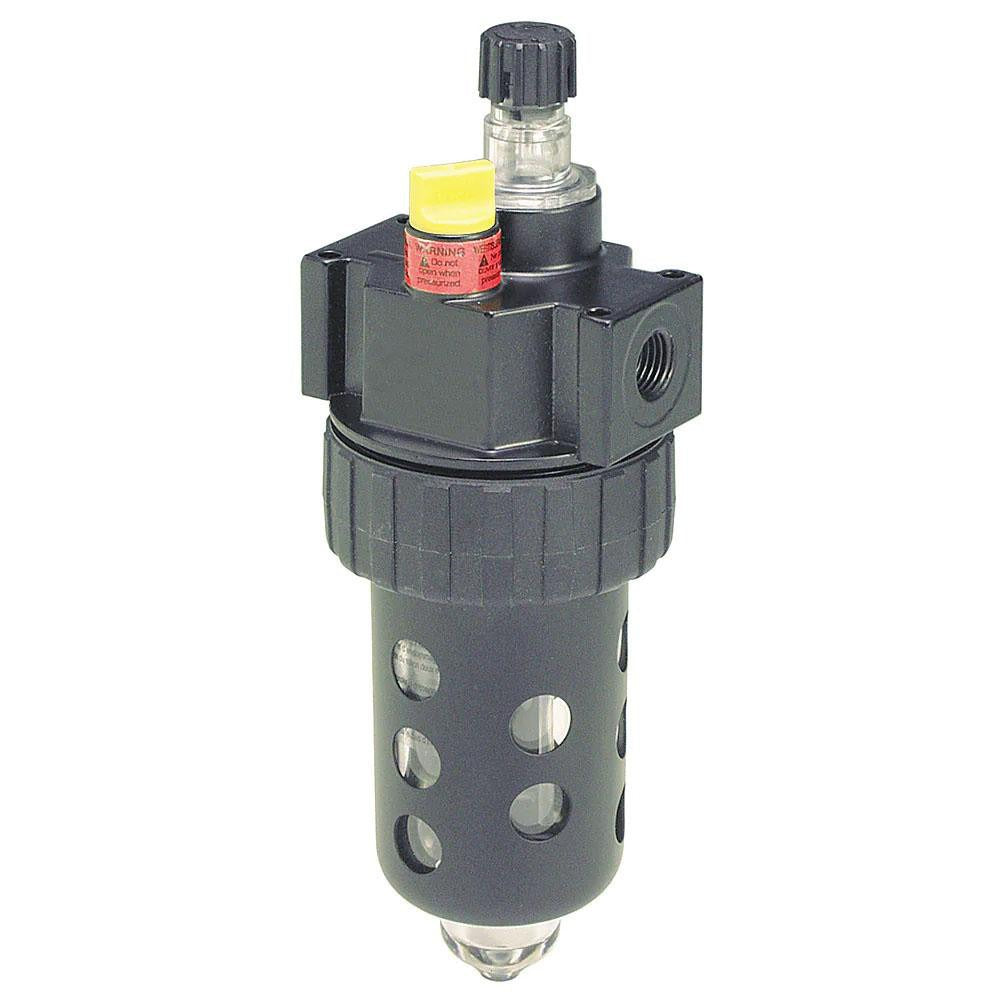

Parker 16L12BE Compressed Air Lubricator 40 Cfm 1/4 Npt

Product Description

The PARKER 16L12BE is an intermediate compressed air lubricator designed to deliver controlled oil mist to pneumatic tools, actuators, and air-operated equipment in compressed air systems. Part of the Parker Series 16L, this micro mist lubricator meters oil into the airstream at flow rates up to 40 CFM through a 1/4 inch NPT port. The zinc body provides durability in industrial service environments, while the polycarbonate bowl with metal bowl guard allows visual oil level monitoring without sacrificing protection. A built-in sight glass confirms oil feed during operation. The unit supports modular connection, making it compatible with inline filter-regulator-lubricator (FRL) assemblies. Licensed HVAC, pneumatic, and mechanical service technicians install this type of component in air preparation lines feeding production equipment and automated systems.

The PARKER 16L12BE is suited for use in light to medium industrial compressed air circuits where pneumatic components require continuous lubrication. Typical installations include manufacturing lines, maintenance shops, and mechanical rooms where tools or cylinders run on compressed air at flow demands at or below 40 CFM. The modular connection feature allows this lubricator to be paired inline with compatible Parker Series 16 filters and regulators to form a complete FRL assembly. Minimum operating temperature is 32 degrees F, making it appropriate for conditioned indoor environments.

Key Features

• Micro mist lubricator design delivers fine, consistent oil dispersion into the airstream
• 1/4 inch NPT port with NPT end connections for standard compressed air piping
• Zinc body construction for corrosion resistance and structural durability
• Polycarbonate bowl with metal bowl guard and integrated sight glass for safe visual monitoring
• Modular connection supports inline FRL assembly configurations
• 2.6 oz bowl capacity suits intermittent to continuous-duty service cycles

Compatibility

Designed as an OEM-style component in the Parker Series 16L line. Modular connection allows inline pairing with compatible Series 16 filter and regulator units. No additional model-specific compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a qualified mechanical or pneumatic technician. Depressurize and lock out the compressed air supply completely before connecting or disconnecting any FRL component. Apply thread sealant appropriate for compressed air service to NPT connections and tighten to fitting manufacturer specifications using proper wrenches — do not overtighten polycarbonate bowl assemblies. Verify oil type compatibility with system seals, noting that this unit uses nitrile seals, before filling the bowl.
