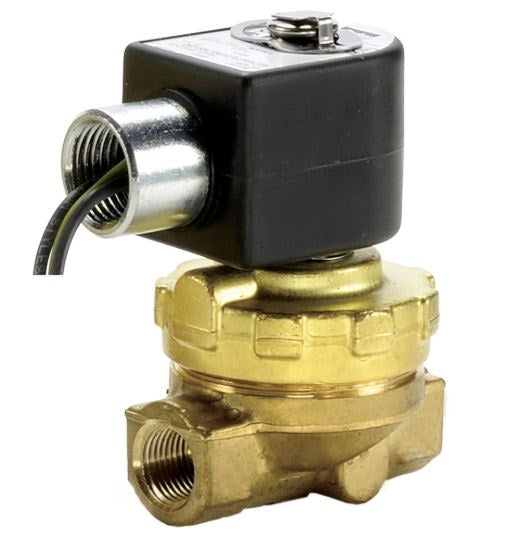

PARKER 16FS5C2364ACF4C05 2-Way Solenoid Valve

Product Description

The Parker 16FS5C2364ACF4C05 is a 2-way solenoid valve designed for use with low-pressure steam and hot water systems. This valve is constructed with a brass body and features EPDM seals for durability. It operates in a normally closed configuration and has an internal pilot for efficient control. This valve is suitable for applications that require high flow rates while maintaining a low pressure drop.

• 2-way normally closed configuration
• Designed for low-pressure steam and hot water
• Includes stainless steel orifice and integrated strainer

Product Highlights

This product is ideal for HVAC applications requiring seamless flow control of hot water and steam.

Product Information

Standard Information

• Product Type: Solenoid Valve 2W Steam Valves
• Configuration/Type: 2 Way

Technical Specifications

• Operation: Normally Closed
• Media: Hot Water
• Pipe/Port Size: 1 inch
• Connection: NPT
• Maximum Operating Pressure Differential: 150.0 psi
• Minimum Operating Pressure Differential: 1.0 psi
• Input Voltage: 120/60 VAC
• Body Material: Brass
• Seal Material: EPDM
• Flow Coefficient/Rating: 12.2 Cv
• Orifice Diameter: 1.0 inch
• Enclosure: 1/2 inch conduit
• Coil Terminations: 18 inch leads
• Power Consumption: 11 W
• Coil Insulation: Class F
• Ambient Temperature: 32°F - 131°F
• Fluid Temperature: 300°F
• Maximum Steam Pressure: 50 psi
• Actuation Type: Internal Pilot
• Coil Type: 1/2 NPT conduit w/ leads (incl. ground lead)
• Ingress Protection Rating: NEMA 4X
• Main Flow Coefficient: 12.2 Cv
• Specifications Met: UL
