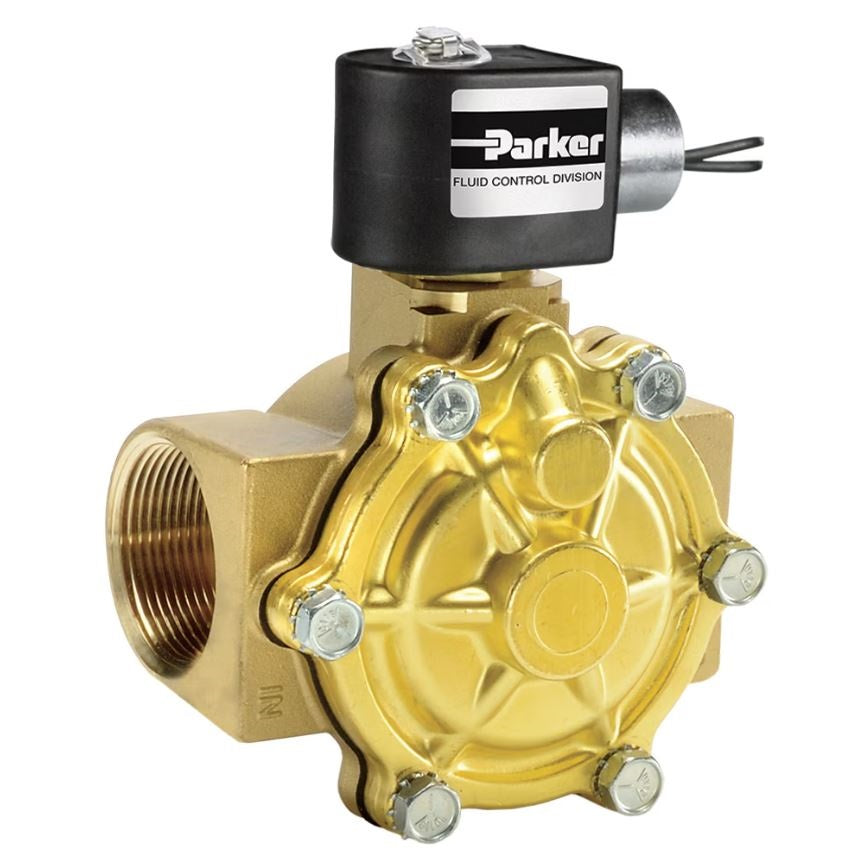

PARKER 16F24O2164ACF4C05 2-Way Normally Open Solenoid Valve

Product Description

The Parker 16F24O2164ACF4C05 is a solenoid valve designed for general purpose applications. This valve can handle air, liquids, gases, and steam, making it versatile. It features internally piloted actuation, ensuring reliable operation. The brass body and NBR seal material provide durability and resistance to various media.

• Valve configuration is 2-way normally open.
• Includes a one-inch NPT port size and orifice size.
• Operational pressure ranges from five psi minimum to one hundred twenty-five psi maximum.

Product Highlights

This product is suitable for various applications and meets UL and CSA standards for safety and reliability.

Product Information

Standard Information

• Brand: Parker
• Sub Brand: Skinner

Technical Specifications

• Valve Configuration: 2 Way
• Function: Normally Open
• Body Material: Brass
• Seal Material: NBR
• Orifice Size: 1 inch
• Port Size: 1 inch
• Port Type: NPT
• Actuation Type: Internally Piloted
• Input Voltage: 120/60, 110/50 VAC
• Power Consumption: 11.0 W
• Maximum Fluid Temperature: 180.0 °F
• Maximum Ambient Temperature: 130.0 °F
• Minimum Pressure Differential: 5.0 psi
• Maximum Pressure Differential: 125.0 psi
• Media: General Purpose
• Coil Type: 1/2 NPT Conduit w/ Leads (Incl. Ground Lead)
• Coil Insulation Class: Class F
• Ingress Protection Rating: NEMA 4,4X
• Main Flow Coefficient: 13.0 Cv
• Specifications Met: UL, CSA Listed General Purpose Valve
• Electrical Connection: 18 IN Leads
• Width: 3-3/4 IN
• Other Physical Dimension: 4-3/16 IN Inlet Center To Top Of Valve
