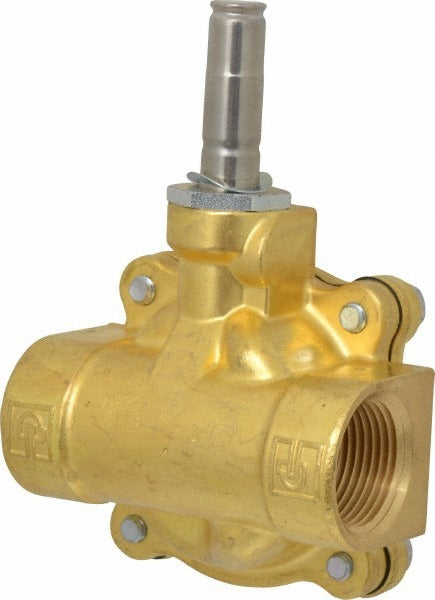

Parker 16F24O2164ACF 2-way Solenoid Valve 1 Inch Npt

Product Description

The PARKER 16F24O2164ACF is a two-way, piloted diaphragm solenoid valve with a 1-inch NPT port in a normally open configuration. It controls the flow of fluids, gases, and light oils in industrial and commercial piping systems. The brass body and NBR seal deliver dependable corrosion resistance across a wide range of media. Rated to 125 psi maximum working pressure and a maximum temperature of 180 degrees F, it suits demanding process and utility applications. The valve accepts multiple voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, giving installers broad electrical compatibility. A coil is included. The unit weighs 3.75 pounds.

This solenoid valve is suited for commercial and light industrial systems where automated on/off flow control of fluids, gases, or light oils is required. Typical applications include process piping, utility water lines, compressed air systems, and HVAC-adjacent fluid control circuits. The normally open design means the valve passes flow without power applied and closes upon energization, making it appropriate for fail-open safety schemes. The 1-inch NPT port fits standard pipe assemblies without adapters in most North American installations. The CSA, UL, and NEMA 4X ratings support use in environments that may see moisture or wash-down conditions.

Key Features

• Two-way piloted diaphragm design with normally open unactuated state
• 1-inch NPT port with a 1.0-inch orifice and a Cv factor of 13.0 for high-flow capacity
• Brass body with NBR seal — compatible with fluids, gases, and light oils
• Multi-voltage coil: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Rated to 125 psi maximum working pressure and 180 degrees F maximum temperature
• CSA Certified, UL Listed, and NEMA 4X rated for wet or wash-down environments
• 11-watt coil included; minimum operating pressure differential of 5 psi required

Compatibility

Cross-references to ASCO Number 8210G14. Designed as a direct-replacement two-way piloted diaphragm solenoid valve for 1-inch NPT piping systems requiring normally open operation with the voltage options listed above.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician familiar with solenoid valve service. De-energize and lock out the electrical circuit and shut off and depressurize the pipeline before removing or installing the valve. NPT threads should be sealed with appropriate thread tape or compound rated for the media being controlled. Verify that system pressure differential meets the 5 psi minimum operating requirement for piloted diaphragm operation before commissioning.
