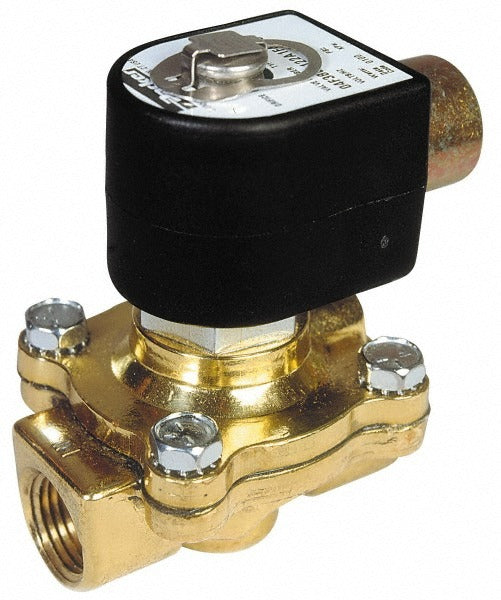

Parker 16F24O2164A3F 2-way Solenoid Valve 1 in Npt

Product Description

The PARKER 16F24O2164A3F is a two-way, piloted diaphragm solenoid valve designed for fluid control in industrial and commercial piping systems. It features a 1-inch NPT port, a brass body, and an NBR seal, making it suitable for a wide range of compatible media. The valve is normally open in its unactuated state, meaning flow passes through until the coil is energized. With a Cv factor of 13.0 and a maximum working pressure of 125 psi, this valve handles moderate to high-flow applications. Licensed electricians, pipefitters, and industrial maintenance technicians are the typical installers.

This valve is suited for use in industrial process lines, commercial HVAC systems, irrigation, and fluid handling applications where a normally open, piloted diaphragm configuration is required. It supports multiple voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, giving installers flexibility across different control circuits. A minimum operating pressure differential of 5 psi is required for pilot-operated actuation. Maximum operating temperature is 180 degrees F. This part is also referenced as ASCO Number 8210G4.

Key Features

• Normally open piloted diaphragm design allows flow without power applied
• 1-inch NPT port with a Cv rating of 13.0 for high-flow capacity
• Brass body with NBR seal for compatibility with a broad range of fluid media
• Multi-voltage coil compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or washdown environments
• 11.5-watt coil power draw supports standard industrial control circuits

Compatibility

This valve is referenced under ASCO Number 8210G4 and is designed as a two-way piloted diaphragm solenoid valve for use in systems requiring a 1-inch NPT normally open valve with compatible brass body and NBR seal construction. Verify voltage requirements and minimum pressure differential before installation.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified industrial technician familiar with solenoid valve systems. Shut off all fluid supply and de-energize the control circuit before beginning work. Note that solenoid coils are not included and must be ordered separately to match the control voltage of the target system. A minimum pressure differential of 5 psi across the valve is required for proper pilot operation — direct-acting operation is not supported by this valve design.
