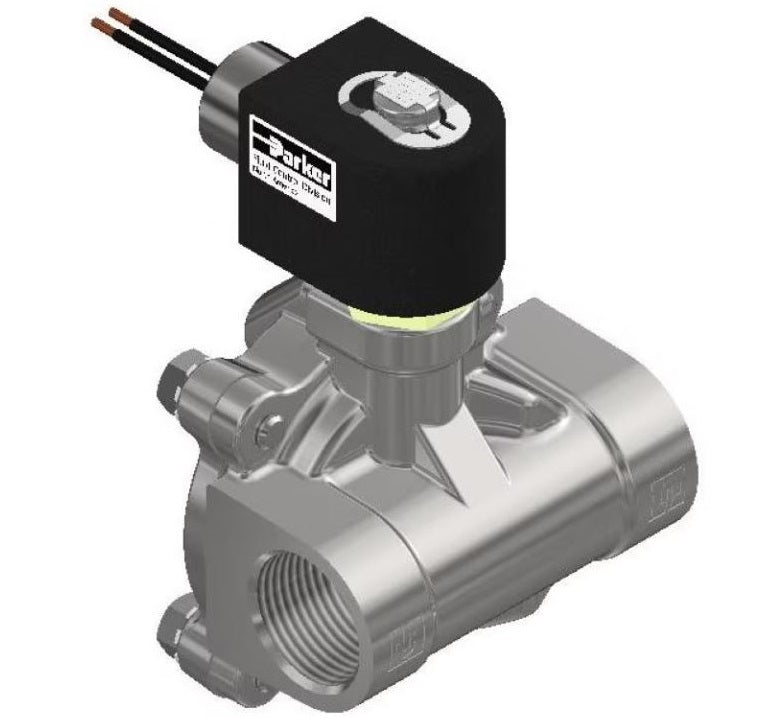

Parker 16F24C6264AAF4C05 2-Way Solenoid Valve

Product Description

The Parker 16F24C6264AAF4C05 is a 2-way solenoid valve made for general-purpose, high-flow uses. It is designed with a normally closed setup and features internal pilot operation. Made from durable 316 stainless steel, this valve uses FKM seals suitable for various media.

• High-flow design for efficient operation
• Constructed from 316 stainless steel for durability
• Meets NEMA 4 and 4X standards for protection

Product Highlights

This valve is ideal for many applications, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Parker
• MPN: 16F24C6264AAF4C05

Technical Specifications

• Valve Configuration: 2 Way
• Body Material: 316 Stainless Steel
• Orifice Size: 1 inch
• Function: Normally Closed
• Port Size: 1 inch
• Power Consumption: 6.0 W
• Actuation Type: Internally Piloted
• Coil Type: 1/2 NPT Conduit w/ Leads (Incl. Ground Lead)
• Maximum Fluid Temperature: 180.0 °F
• Maximum Ambient Temperature: 130.0 °F
• Maximum Pressure Differential: 150 psi (100 Light Oil)
• Media: General Purpose
• Seal Material: FKM
• Port Type: NPT
• Minimum Pressure Differential: 5.0 psi
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4, 4X
• Main Flow Coefficient: 13.0 Cv
• Input Voltage: 110 - 120 VAC At 50/60 HZ
• Electrical Connection: 18 IN Leads
• Industry Standards: UL Listed And CSA Certified
