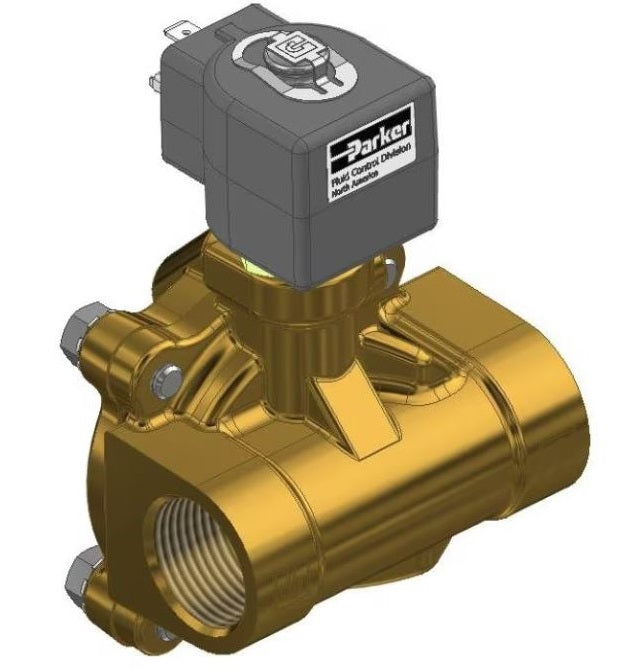

Parker 16F24C2164A3FPH80 2-Way Solenoid Valve

Product Description

The Parker 16F24C2164A3FPH80 is a 2-way solenoid valve suitable for various applications including air, water, and light oils. It is designed to operate in a range of pressure from five to one hundred twenty-five psi. The valve has a brass body and uses NBR seal material, making it durable for general-purpose usage.

• 2-way valve configuration, normally closed
• Constructed with a brass body and NBR seal
• Compatible with air, water, and light oils

Product Highlights

This valve is ideal for controlling fluid flow and is effective in various systems.

Product Information

Standard Information

• Brand: Parker
• MPN: 16F24C2164A3FPH80

Technical Specifications

• Valve Configuration: 2 Way
• Body Material: Brass
• Orifice Size: 1 inch
• Function: Normally Closed
• Port Size: 1 inch
• Power Consumption: 11.5 W
• Actuation Type: Internally Piloted
• Coil Type: DIN 43650A / ISO 4400
• Maximum Fluid Temperature: 150.0 °F
• Maximum Ambient Temperature: 77.0 °F
• Maximum Pressure Differential: 125.0 psi
• Minimum Pressure Differential: 5.0 psi
• Media: General Purpose
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4, 4X
• Main Flow Coefficient: 13.0 Cv
• Input Voltage: 24.0 VDC
• Seal Material: NBR
• Port Type: NPT
• Pressure Range: 5-125 psi
• Specifications Met: UL, CSA Recognized General Purpose Valve
