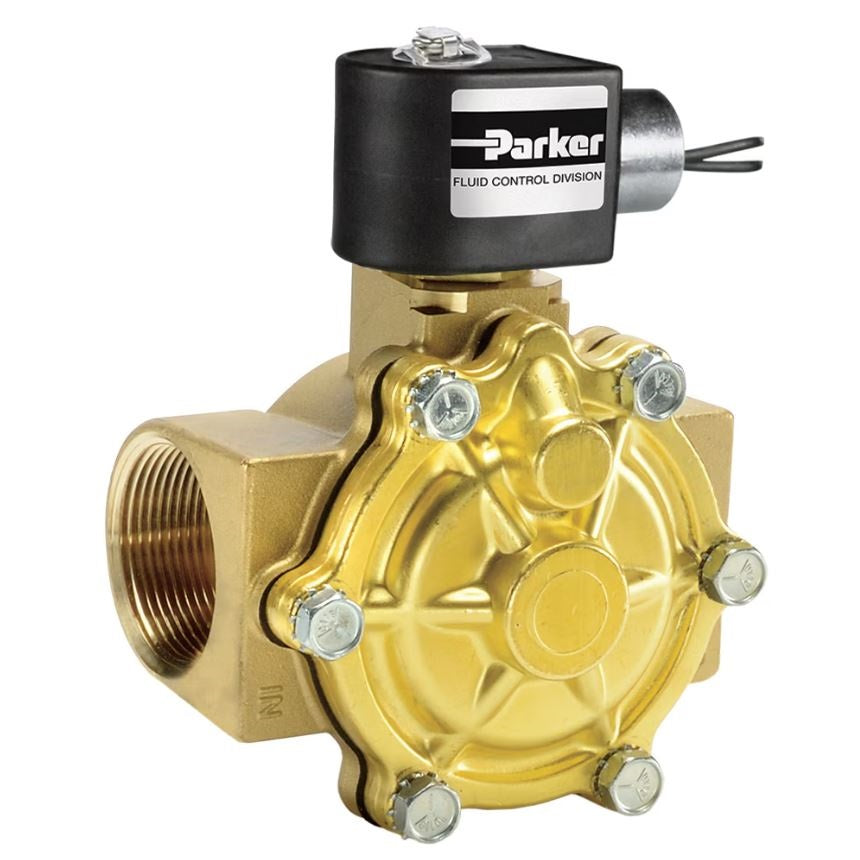

PARKER 16F24C2164A3F4C80 High Flow General Purpose Solenoid Valve

Product Description

The PARKER 16F24C2164A3F4C80 is a two-way, normally closed solenoid valve intended for high flow applications. This valve features a durable brass body and NBR seal, ensuring reliable operation. It comes with a one-inch port size and connects via NPT port type. Designed for use with a twenty-four VDC input, it consumes eleven point five watts of power. The valve effectively controls general purpose media, with a maximum fluid temperature of one hundred fifty degrees Fahrenheit and an ambient temperature of seventy-seven degrees Fahrenheit.

• Two-way normally closed configuration.
• Constructed with brass body and NBR sealing material.
• Compatible with general purpose fluids.

Product Highlights

This solenoid valve is suitable for various applications, making it a versatile addition to any system.

Product Information

Standard Information

• Valve Configuration: Two Way
• Body Material: Brass

Technical Specifications

• Orifice Size: One inch
• Function: Normally Closed
• Power Consumption: Eleven point five watts
• Actuation Type: Internally Piloted
• Coil Type: One-half NPT Conduit with Leads (Includes Ground Lead)
• Maximum Fluid Temperature: One hundred fifty degrees Fahrenheit
• Maximum Ambient Temperature: Seventy-seven degrees Fahrenheit
• Maximum Pressure Differential: One hundred twenty-five psi
• Input Voltage: Twenty-four VDC
• Seal Material: NBR
• Port Type: NPT
• Minimum Pressure Differential: Five psi
• Media: General Purpose
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4, 4X
• Main Flow Coefficient: Thirteen Cv
• Specifications Met: UL, CSA Listed General Purpose Valve
