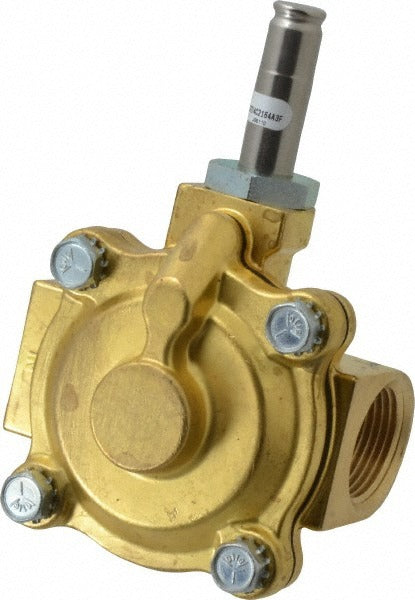

Parker 16F24C2164A3F Solenoid Valve 1 Inch Npt Brass

Product Description

The PARKER 16F24C2164A3F is a 2-way, normally closed, piloted diaphragm solenoid valve with a 1-inch NPT port and a brass body. It controls the flow of fluids, gases, and light oils in piped systems by opening when the coil is energized and closing when power is removed. The valve accepts a wide range of coil voltages including 12 VDC, 24 VDC, 24/60 VAC, 120 VDC, 120/60 to 110/50 VAC, and 240/60 to 220/50 VAC, making it adaptable to many control circuit configurations. With an 11.5-watt coil and a Cv rating of 13.0, it delivers solid flow capacity for industrial and commercial service applications. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers of this valve.

This valve is suited for residential, commercial, and light industrial installations where automated on/off control of compatible media is required. It is appropriate for fluid handling, gas service, and light oil systems operating at up to 125 psi and temperatures up to 150 degrees F. The minimum operating pressure differential requirement of 5 psi means the valve requires at least that differential to pilot open, which should be confirmed against system conditions before installation. The ASCO equivalent reference number for this valve is 8210G4.

Key Features

• Normally closed 2-way piloted diaphragm design — closes automatically on power loss
• 1-inch NPT brass body rated to 125 psi maximum working pressure
• NBR seal material compatible with water, air, gases, and light oils
• Multi-voltage coil compatibility: 12 VDC, 24 VDC, 24/60 VAC, 120 VDC, 120/60 to 110/50 VAC, 240/60 to 220/50 VAC
• Cv factor of 13.0 for reliable flow performance in 1-inch pipe runs
• CSA Certified, UL Listed, and NEMA 4X rated for wet and washdown environments

Compatibility

Designed as a piloted diaphragm solenoid valve for use with fluids, gases, and light oils in systems requiring 1-inch NPT connections and operating within the stated pressure and temperature limits. The ASCO equivalent reference for this valve is 8210G4.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician in accordance with applicable local codes. Shut off system pressure and de-energize all control circuits before removing the existing valve or making new connections. Ensure flow direction matches the arrow or markings on the valve body. Confirm that system pressure differential meets the 5 psi minimum operating requirement before commissioning.
