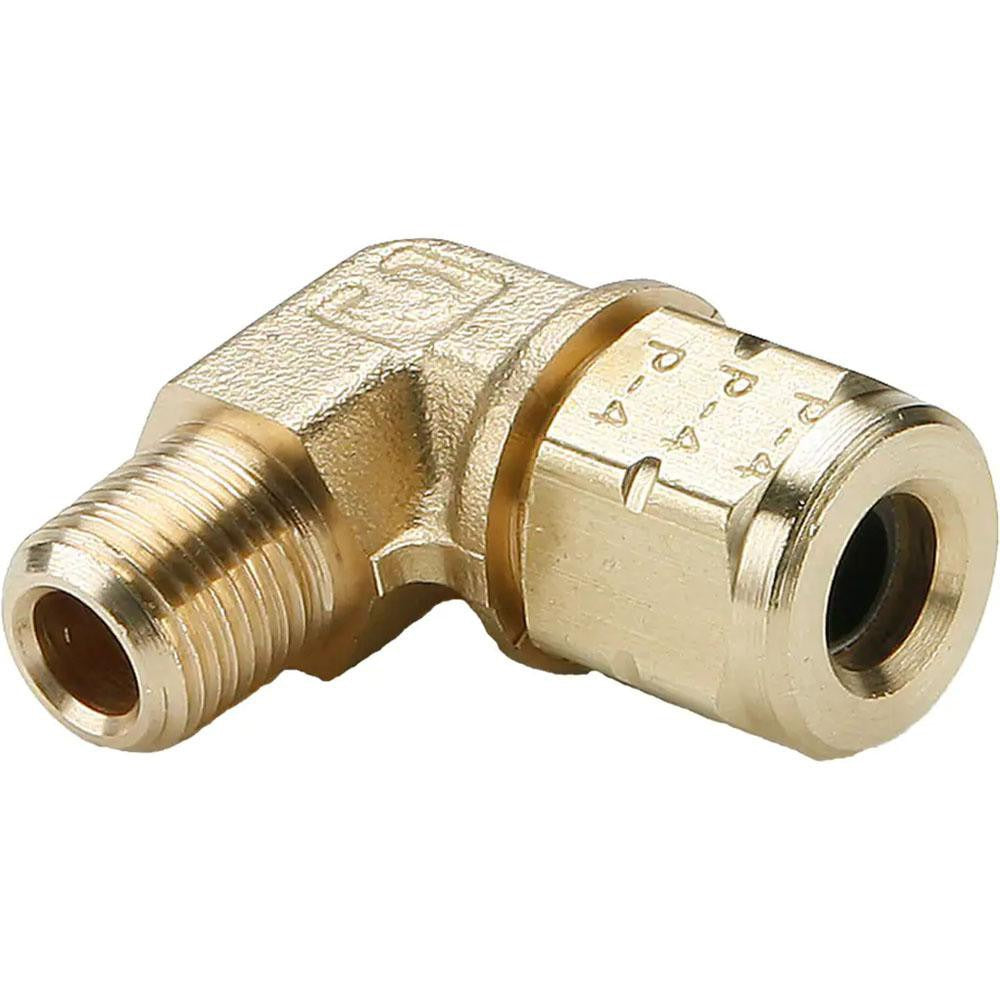

Parker 169VL-8-6 Compression Male Elbow 3/8-18 Brass

Product Description

The PARKER 169VL-8-6 is a brass compression tube male elbow fitting designed to connect tubing to male NPT-threaded ports in fluid and pneumatic systems. It uses Parker's Vibra-Lok compression style, which provides a secure, vibration-resistant seal without requiring soldering or flaring. Rated to 250 psi maximum working pressure, this elbow handles a broad service temperature range from -30 degrees F to 275 degrees F. The fitting transitions between a compression tube end and a 3/8-18 MNPT threaded end in a 90-degree configuration, making it well-suited for routing tubing in confined spaces.

This fitting is used in hydraulic, pneumatic, refrigeration, and plumbing applications where tubing must connect to a male NPT port at a right angle. Typical installations include HVAC equipment connections, compressed air lines, fuel systems, and instrumentation tubing. It is appropriate for both residential and light commercial service work. Plumbers, HVAC technicians, and fluid power mechanics commonly install this type of fitting during new construction and retrofit projects.

Key Features

• Vibra-Lok compression style for vibration-resistant, no-flare tube connections
• Brass construction for corrosion resistance in fluid and air service
• 250 psi maximum working pressure rating
• 3/8-18 MNPT threaded end meets ISO 6149 and SAE J1926 standards
• 90-degree elbow configuration for tight-space routing
• Wide temperature range: -30 degrees F to 275 degrees F

Compatibility

Designed for use with compression tubing systems terminating at 3/8-18 male NPT ports. Meets ISO 6149 and SAE J1926 thread standards for broad interchangeability in hydraulic and pneumatic applications.

Installation Notes

This fitting is installed by licensed plumbers, HVAC technicians, or fluid power mechanics. Ensure all system pressure is relieved and the line is depressurized before disassembly or installation. Tighten the compression nut to the manufacturer's recommended procedure for Vibra-Lok fittings — do not overtighten, as brass fittings can crack. Verify thread compatibility and confirm the system fluid and pressure are within the fitting's rated limits before returning the system to service.
