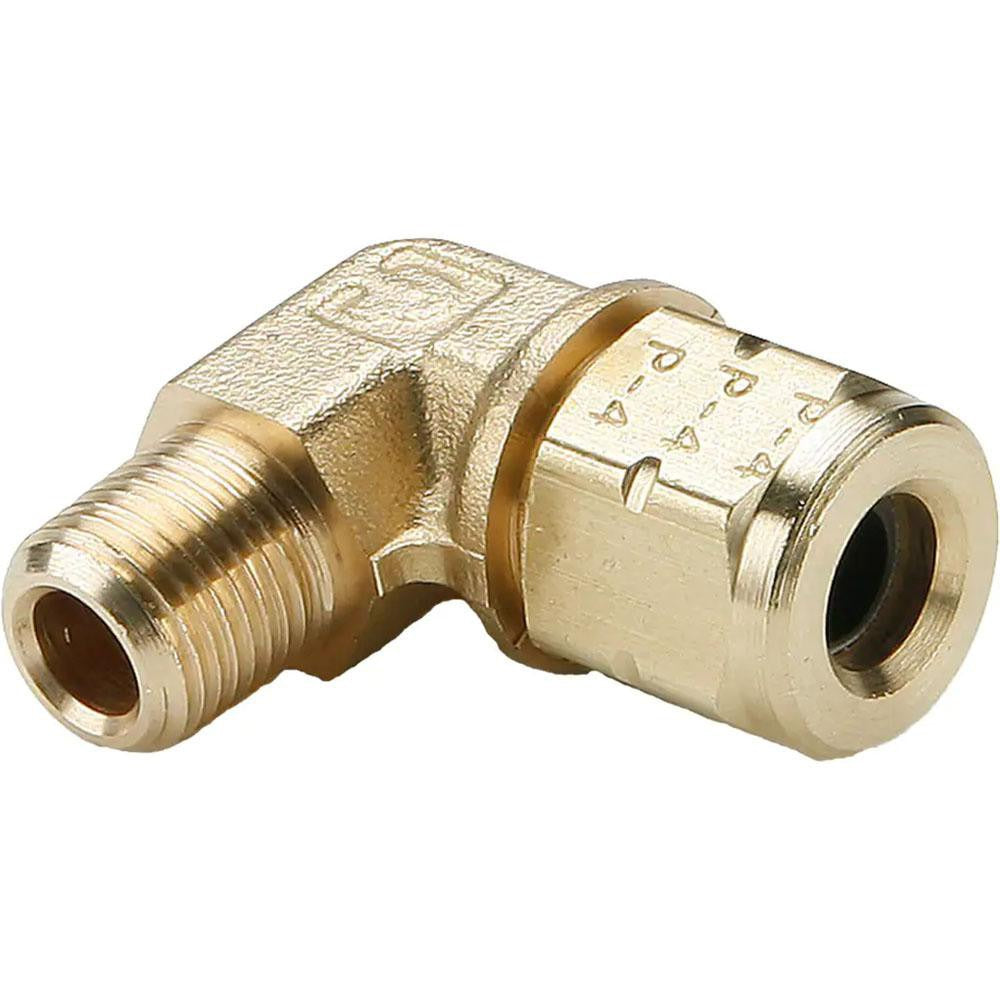

Parker 169VL-3-2 Compression Male Elbow 1/8-27 Brass 600 Psi

Product Description

The PARKER 169VL-3-2 is a brass compression tube male elbow fitting designed for reliable tube-to-pipe connections in hydraulic, pneumatic, and fluid distribution systems. It features Parker's Vibra-Lok compression style, which provides a secure, vibration-resistant connection without the need for flaring or soldering. The fitting transitions from a compression tube end to a male NPT (MNPT) threaded port, with a 1/8-27 thread size rated to a maximum working pressure of 600 psi. Constructed from brass, it suits a wide range of fluid and gas service applications. Licensed plumbers, HVAC technicians, and industrial pipefitters typically install this type of fitting.

This fitting is suited for residential and light commercial systems where compression-to-male-pipe-thread transitions are required, such as refrigeration lines, instrumentation tubing, control system plumbing, and pneumatic distribution networks. The 90-degree elbow orientation allows for directional changes in tight spaces without bending or stressing the tube. It meets ISO 6149 and SAE J1926 standards, making it appropriate for applications that specify these certifications. The Vibra-Lok compression design is particularly well suited for installations subject to vibration or thermal cycling.

Key Features

• Vibra-Lok compression style provides a secure, vibration-resistant tube connection without flaring or soldering
• 1/8-27 MNPT thread for direct connection to standard male pipe thread ports
• 600 psi maximum working pressure rating
• Brass construction offers corrosion resistance and compatibility with a broad range of fluids and gases
• Meets ISO 6149 and SAE J1926 standards
• Rated for service from -30 degrees F to 275 degrees F (135 degrees C)

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube to male NPT connections in systems meeting ISO 6149 and SAE J1926 standards.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified pipefitter in accordance with applicable codes. Shut off and depressurize the system completely before disassembling or installing any compression fitting. Do not over-tighten the compression nut, as this can deform the ferrule and compromise the seal. Inspect the tube end for burrs or damage before assembly, as a clean, square cut is required for a leak-free Vibra-Lok connection.
