Parker 169PLPNS-5/32-4LT 90 Male Elbow Fitting 5/32 Od

Product Description

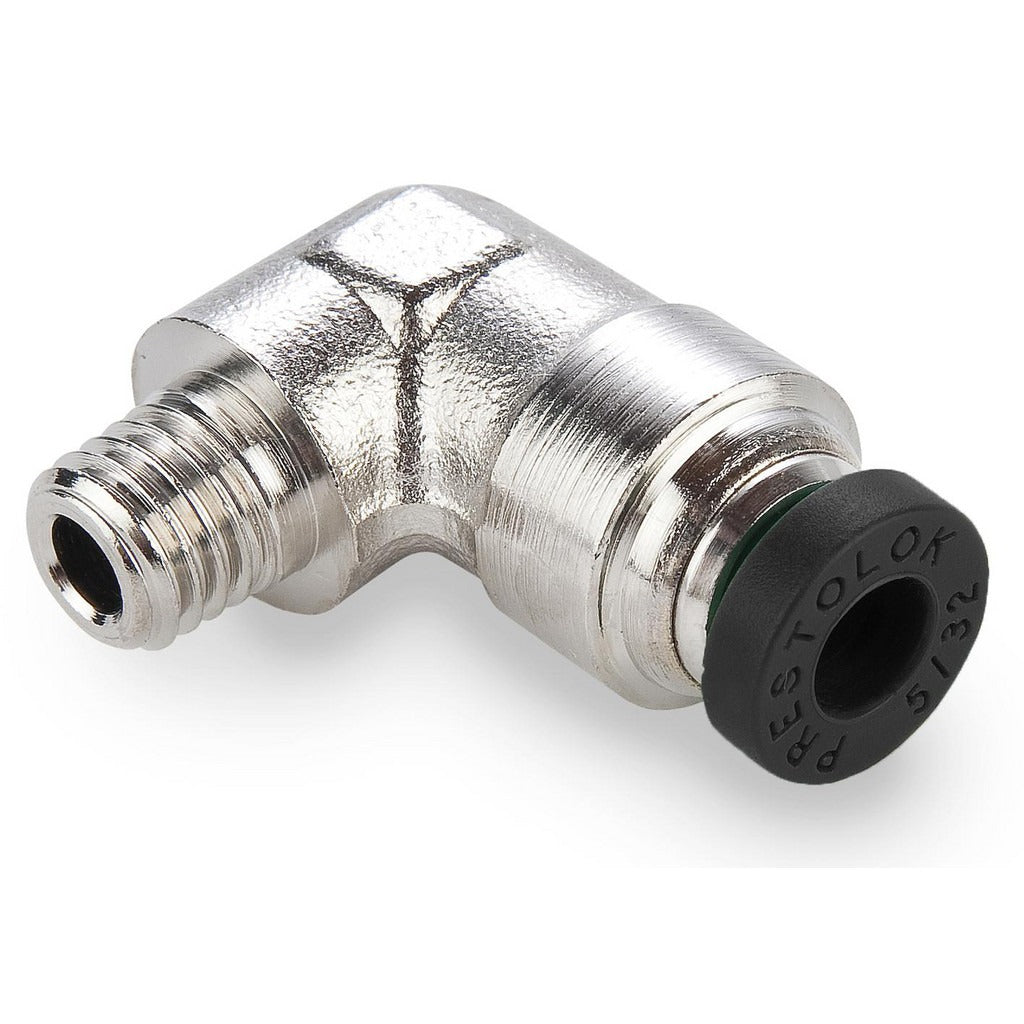

The PARKER 169PLPNS-5/32-4LT is a push-to-connect 90-degree male elbow fitting designed for tube-to-male tube connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, it accepts 5/32-inch outside diameter tubing and connects to a 1/4-inch SAE male thread. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. Its push-to-connect design allows fast, tool-free tube insertion and secure locking, making it suitable for HVAC controls, pneumatic instrument lines, and similar low-volume tubing applications. Installation and removal are managed through a black flame-resistant release button that meets UL94 V-0 standards.

This fitting is suited for residential and light commercial HVAC controls, pneumatic actuator circuits, refrigeration controls, and similar applications where compact 90-degree directional changes are required in small-diameter tubing runs. It is typically installed by HVAC technicians, refrigeration mechanics, or instrumentation specialists working with 5/32-inch OD tubing and 1/4-inch SAE male-threaded ports. The compact overall length of 0.6 inches makes it well suited for tight panel or manifold installations where space is limited.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure locking
• Nickel-plated brass construction provides corrosion resistance in control and pneumatic environments
• Rated to 300 psi maximum working pressure
• Operating temperature range from 0 degrees F to 200 degrees F
• Black release button is flame-resistant and compliant with UL94 V-0 standard
• Compact 0.6-inch overall length suits tight installation spaces

Compatibility

Designed for use with 5/32-inch OD tubing and 1/4-inch SAE male-threaded ports in pneumatic and fluid control system applications.

Installation Notes

Installation should be performed by a qualified HVAC technician, refrigeration mechanic, or instrumentation specialist. Before servicing, isolate and depressurize the tubing circuit completely. Ensure tubing ends are cut cleanly and squarely with no burrs before inserting into the fitting. To remove tubing, depress the release button fully and pull the tube straight out.
