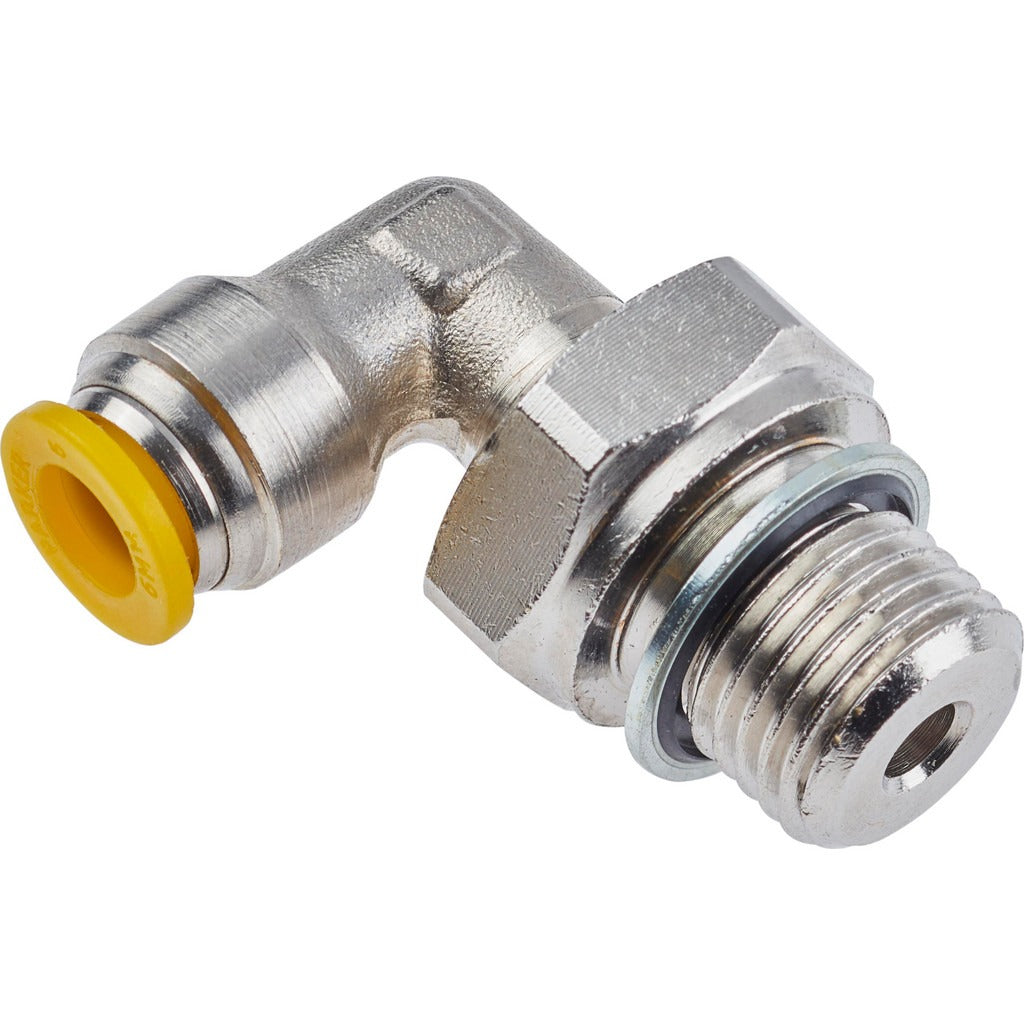

Parker 169PLP-6M-M5 90 Swivel Male Elbow 6mm 300 Psi

Product Description

The PARKER 169PLP-6M-M5 is a 90-degree swivel male elbow push-to-connect fitting designed for tube-to-male tube connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, it accepts 6mm outside diameter tubing on the push-to-connect end and threads into an M5 x 0.8 male port. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. It uses silicone-free grease and meets the UL94 V-0 flame resistance standard, making it suitable for installations where flame-resistance compliance is required. HVAC technicians, pneumatic system technicians, and industrial maintenance professionals typically install this type of fitting.

This fitting is suited for residential and light commercial pneumatic control applications, as well as instrumentation and fluid-handling lines where a 90-degree directional change is needed at an M5 x 0.8 threaded port. The swivel elbow design allows the fitting body to rotate after installation, simplifying tube routing and reducing strain on the connected tubing. The yellow release button provides a clear visual indicator for push-to-connect tube removal during service or reconfiguration.

Key Features

• 90-degree swivel elbow design allows post-installation rotation for flexible tube routing
• Push-to-connect end accepts 6mm outside diameter tubing without additional tools
• M5 x 0.8 male threaded port for direct installation into compatible ported components
• Nickel-plated brass construction for corrosion resistance and durability
• Rated to 300 psi maximum working pressure
• Meets UL94 V-0 flame resistance standard; uses silicone-free grease

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and fluid control systems using 6mm OD tubing and M5 x 0.8 threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid-control systems. Depressurize and isolate the system completely before removing or installing any fittings. Thread engagement should follow standard hand-tight-plus-turns practice for brass fittings; avoid over-tightening, which can damage the nickel-plated brass threads. To release tubing from the push-to-connect end, press the yellow release button inward while pulling the tube straight out.
